BMW M3 Forged Wheels

What custom wheels fit a BMW M3?

Motivo Forged builds custom forged wheels to order for the BMW M3 — monoblock and two-piece designs machined to your exact bolt pattern, offset, and finish. Below: 4 real customer builds, fitment guidance, and every wheel design available for this car.

Browse by generation: G80 (2) F80 (1)

G80 M3 Fitment Specs (2021-present)

Bolt pattern5x112
Center bore66.6 mm
OEM front19x9.5 ET20
OEM rear20x10.5 ET28
Recommended setups 20x9.5 front / 20x10.5 rear — square-diameter staggered, popular track look 20x9.5 front / 21x10.5 rear — OEM-style rake with deeper rear concave

The G80 M3 ships staggered 19/20 from the factory, and most owners move to a 20/20 or 20/21 forged setup. The G-chassis 5x112 pattern and generous arches make aggressive widths workable; a forged monoblock drops meaningful weight versus the cast OEM wheels.

F80 M3 Fitment Specs (2014-2018)

Bolt pattern5x120
Center bore72.6 mm
OEM front19x9 ET29
OEM rear19x10 ET40
Recommended setups 20x9.5 front / 20x11 rear — aggressive concave fitment 19x9.5 / 19x10.5 — lightweight track-focused setup

The F80 M3 uses the classic BMW 5x120 pattern. Its arches accept up to 11" of rear wheel with the right offset, which is why deep-concave rear fitments are an F80 signature. Forged construction keeps a 20" setup lighter than the stock 19" cast wheels.

BMW M3 Vehicle Gallery

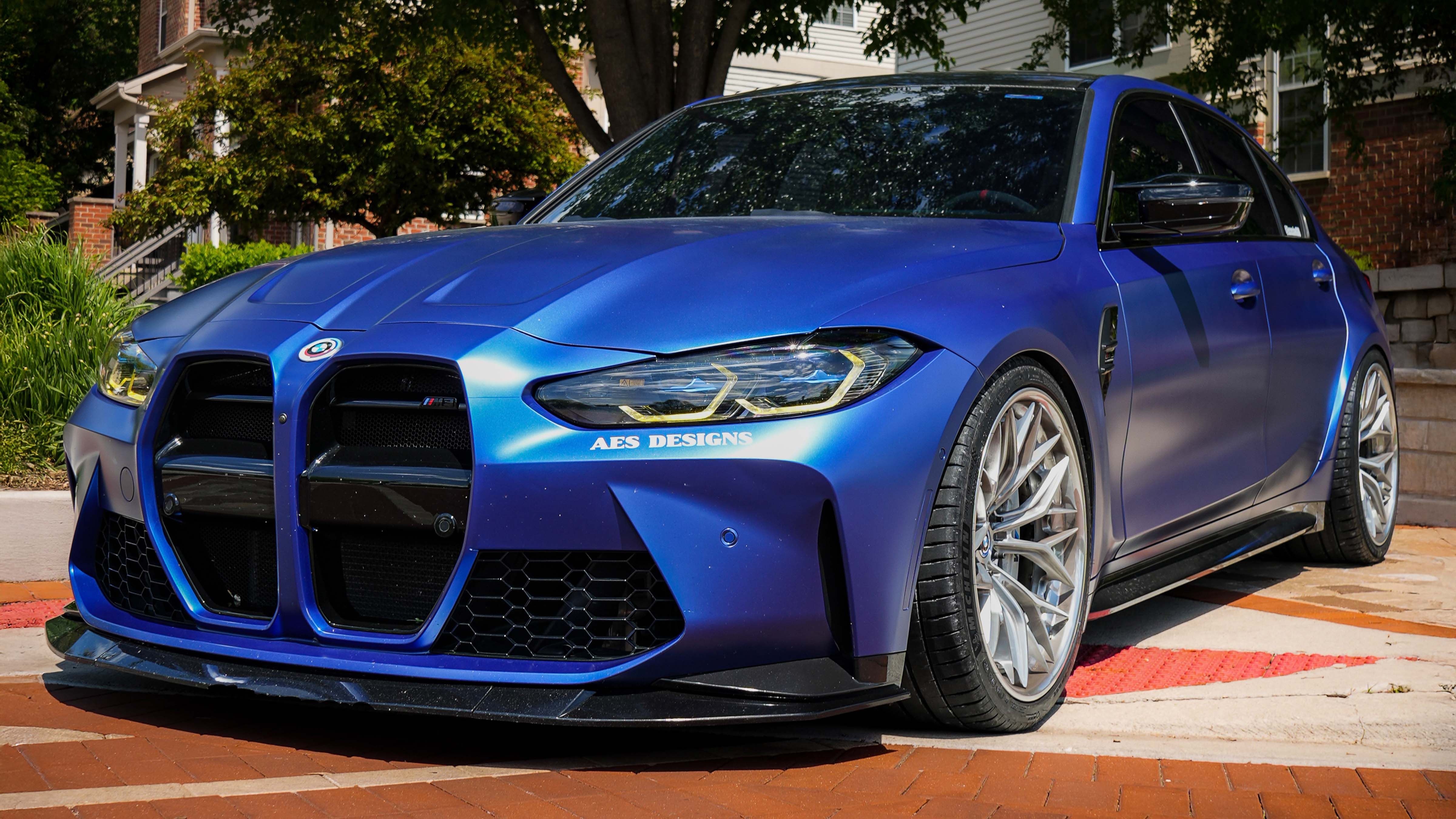

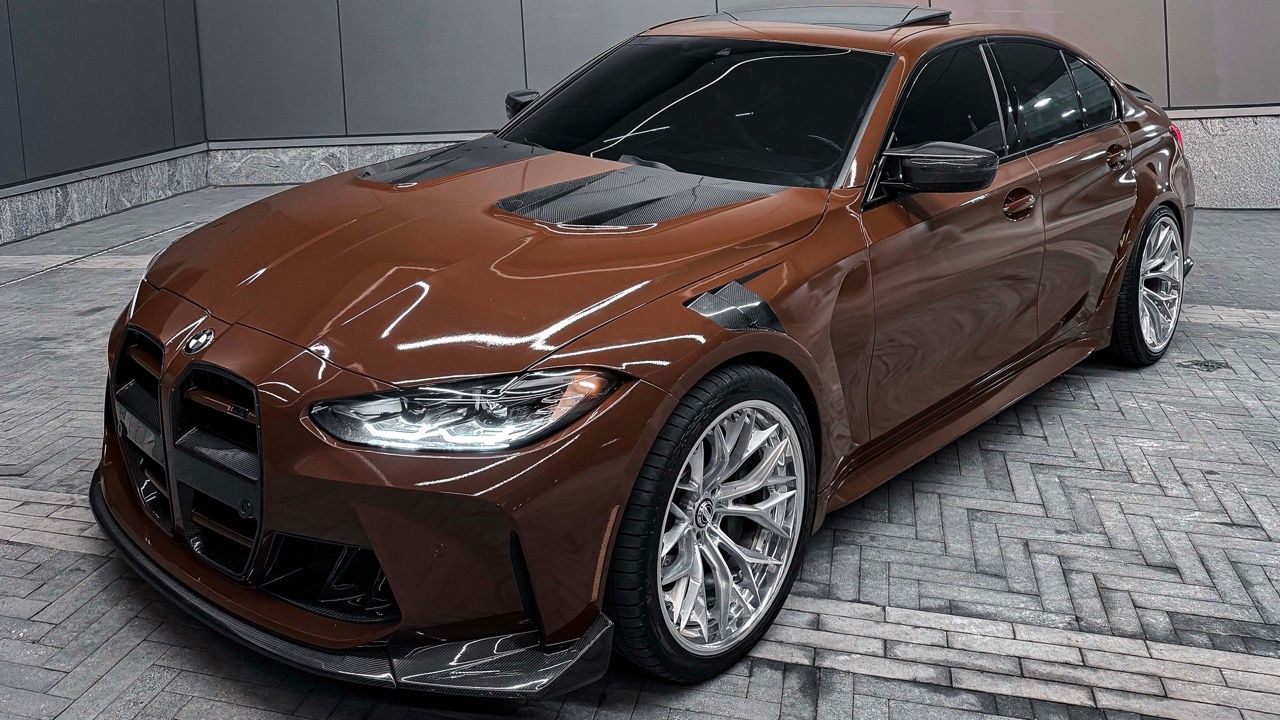

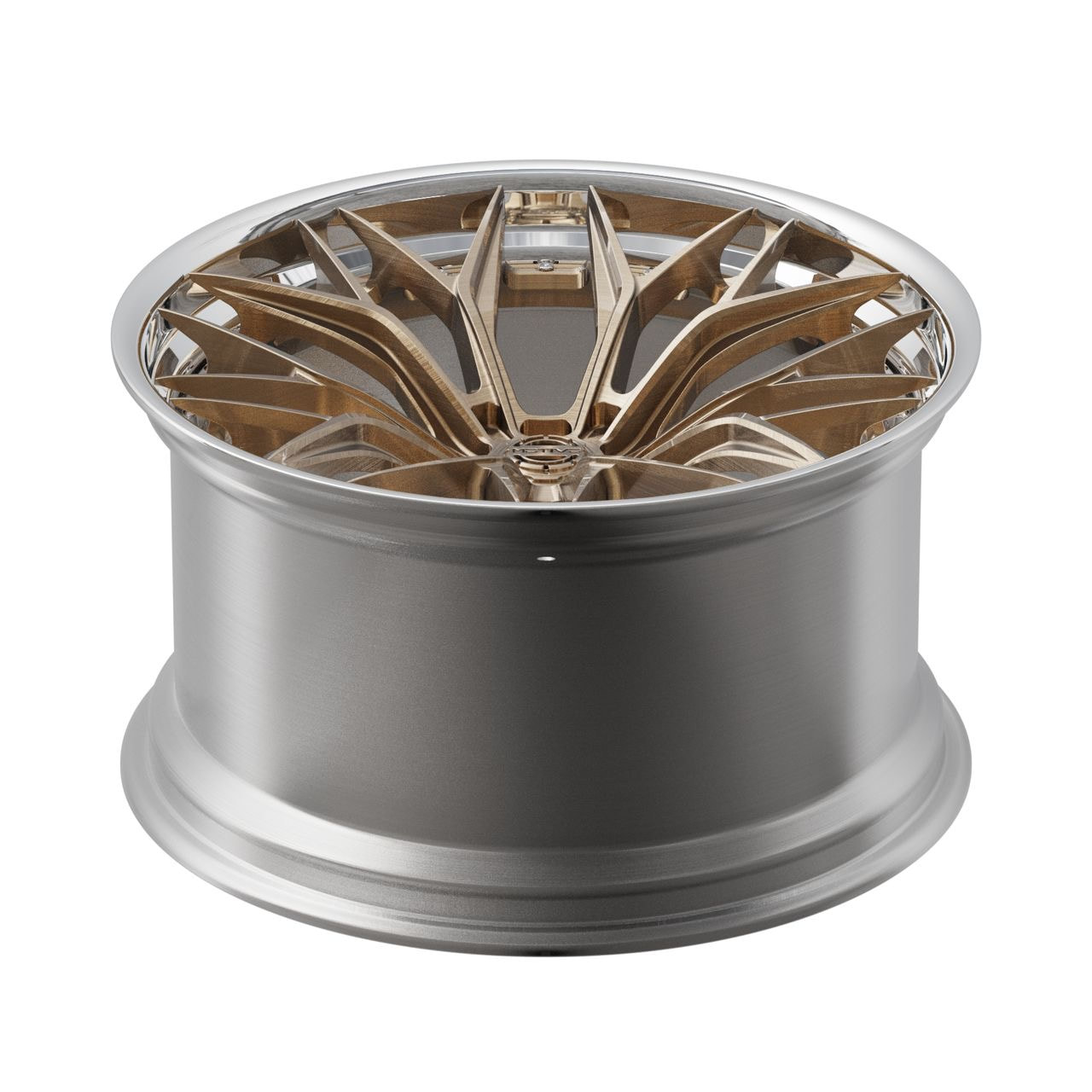

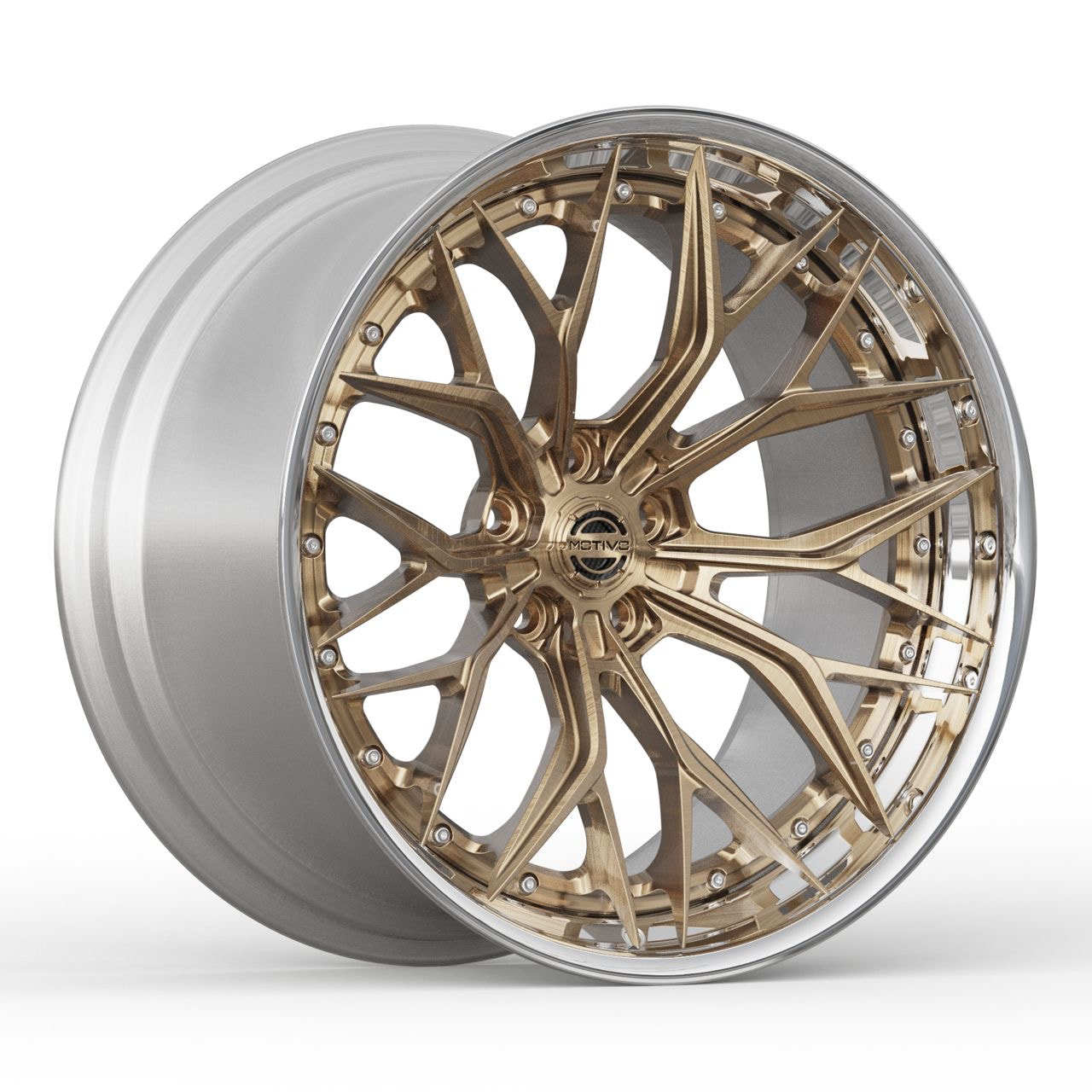

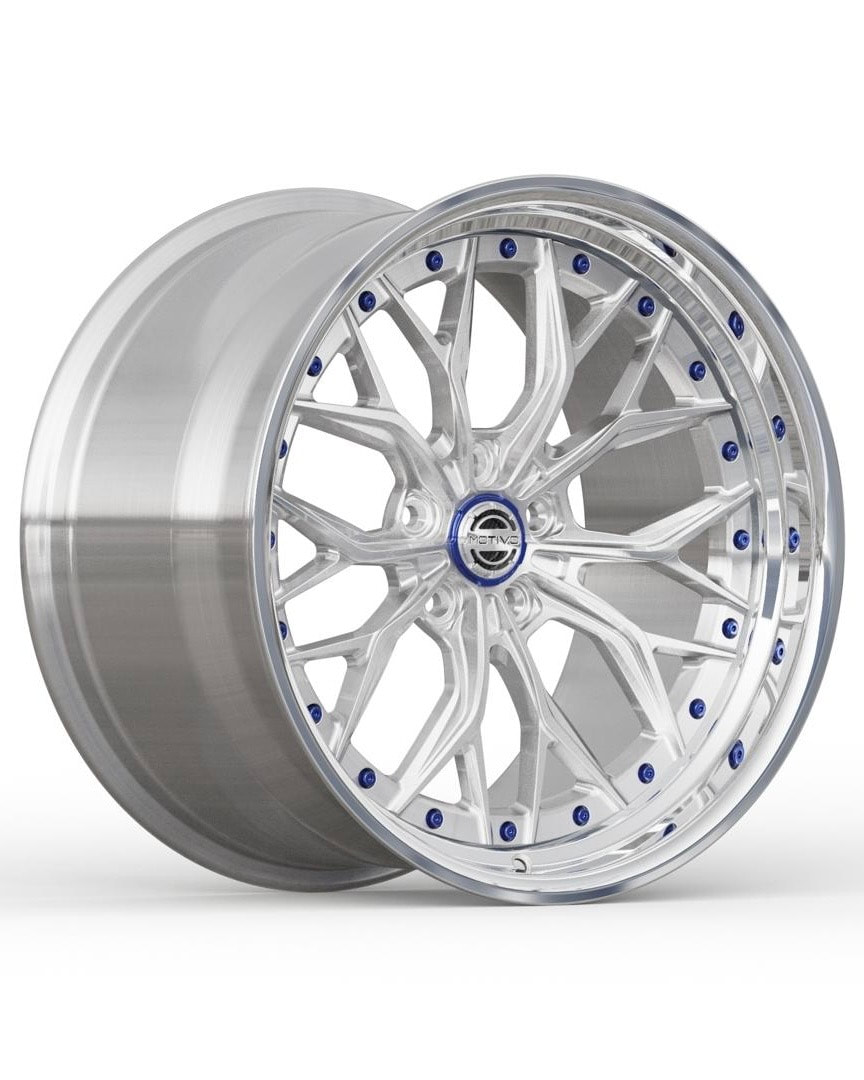

BMW M3 G80 with Motivo Forged CS-J custom wheels in gloss brushed clear face and gloss polished clear front side view
2024 BMW M3 on Motivo Forged CS-J in Gloss Brushed Clear, Gloss Polished Clear 20x10 · 20x11
BMW M3 G80 with Motivo Forged CS-J custom wheels in gloss brushed clear face and gloss polished clear front side view
2023 BMW M3 on Motivo Forged CS-J in Gloss Brushed Clear, Gloss Polished Clear 20x10 · 20x11

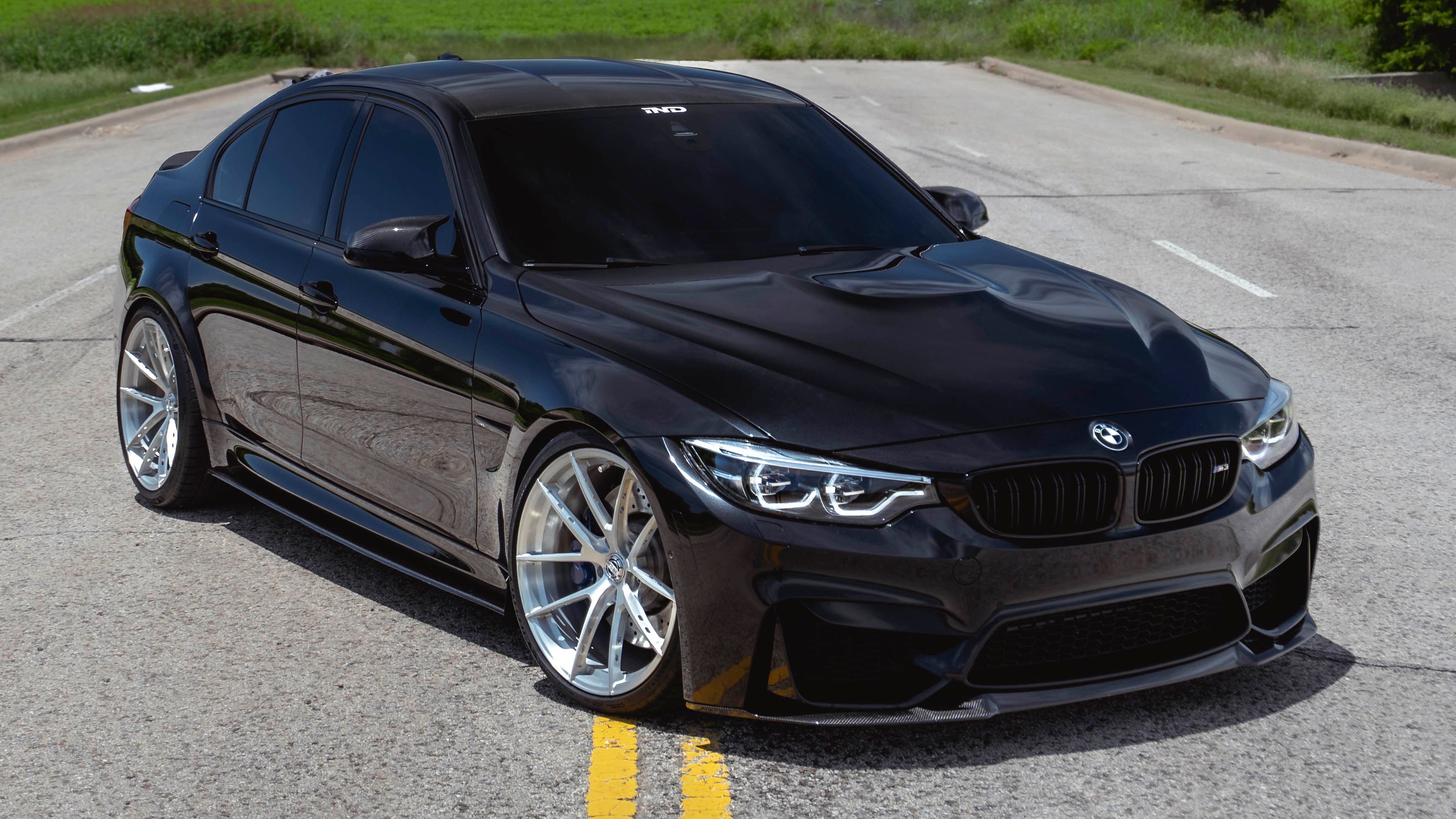

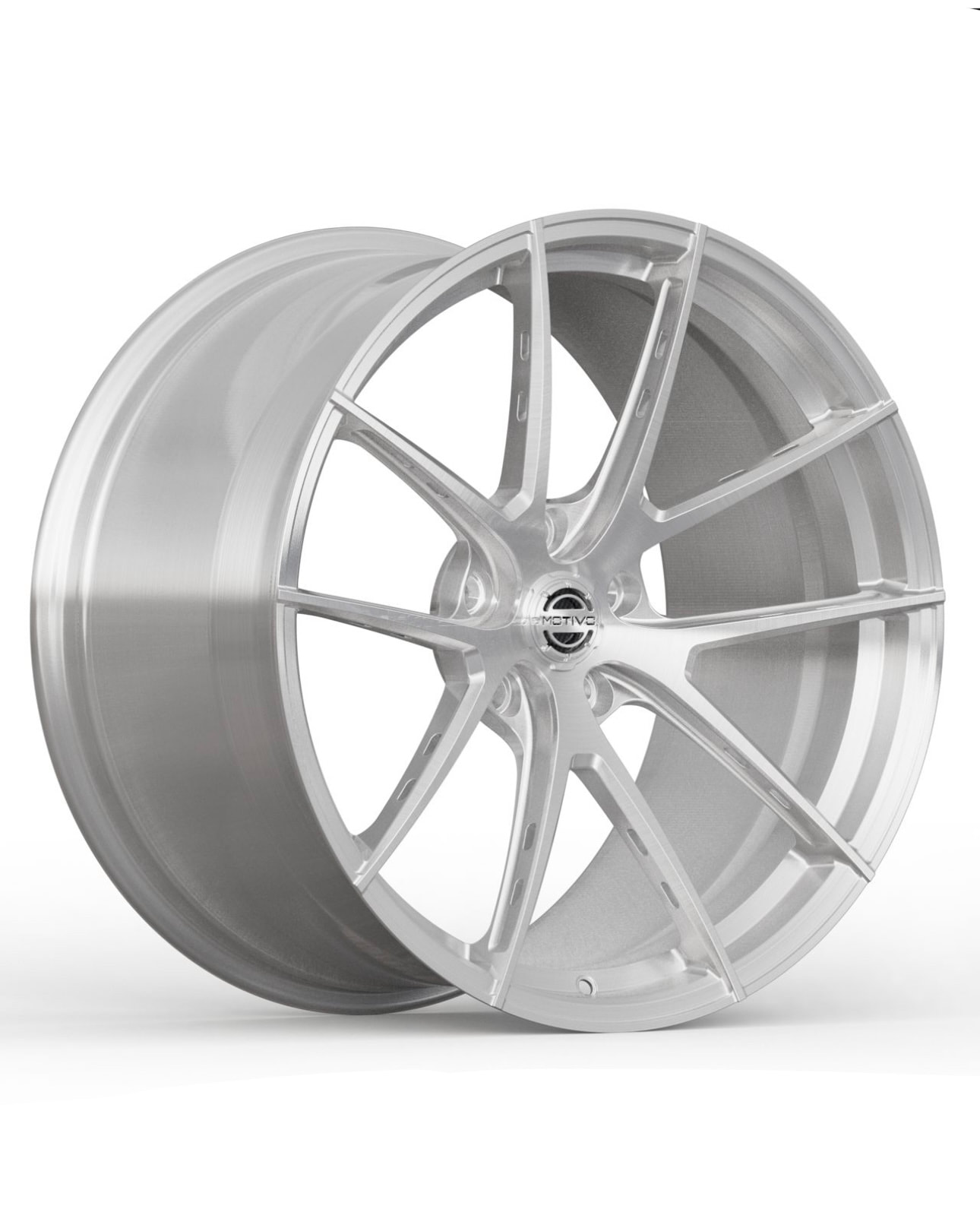

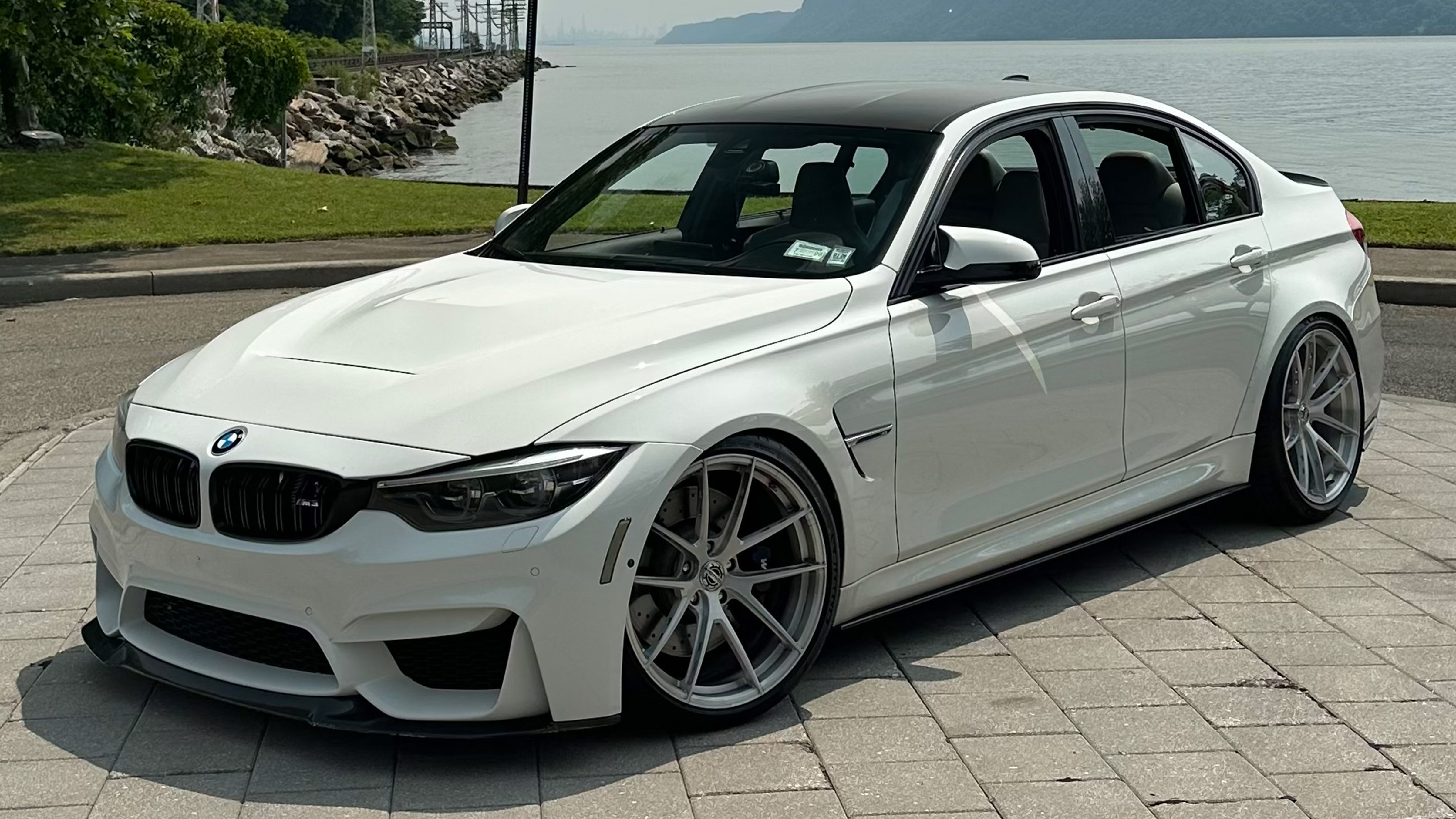

BMW M3 with Motivo Forged MB-K custom wheels in gloss brushed clear finish side view
2017 BMW M3 on Motivo Forged MB-K in Gloss Brushed Clear 20x9.5 · 20x11
BMW M3 with Motivo Forged MB-K custom wheels in gloss brushed clear finish side view
2017 BMW M3 on Motivo Forged MB-K in Gloss Brushed Clear 20x9.5 · 20x11

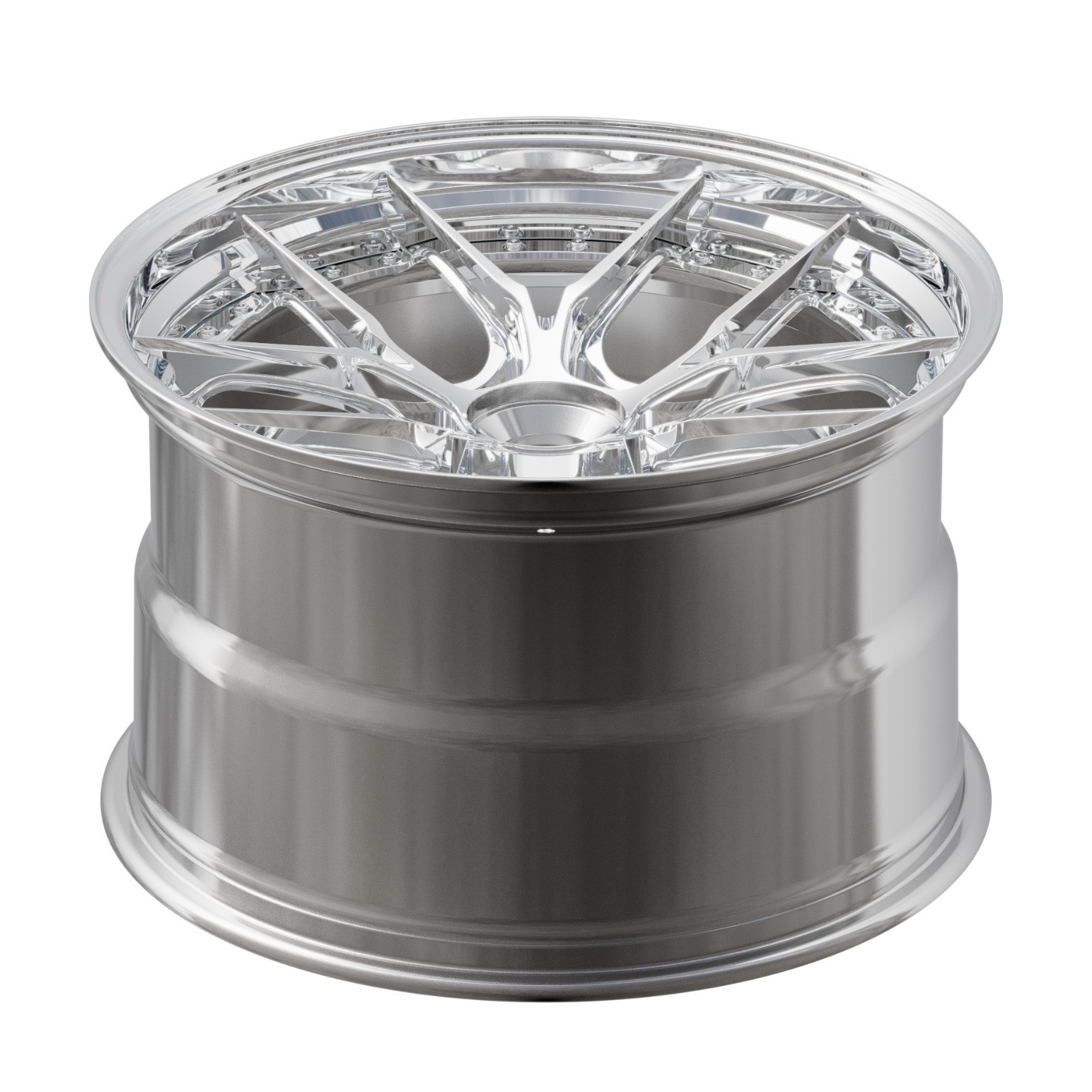

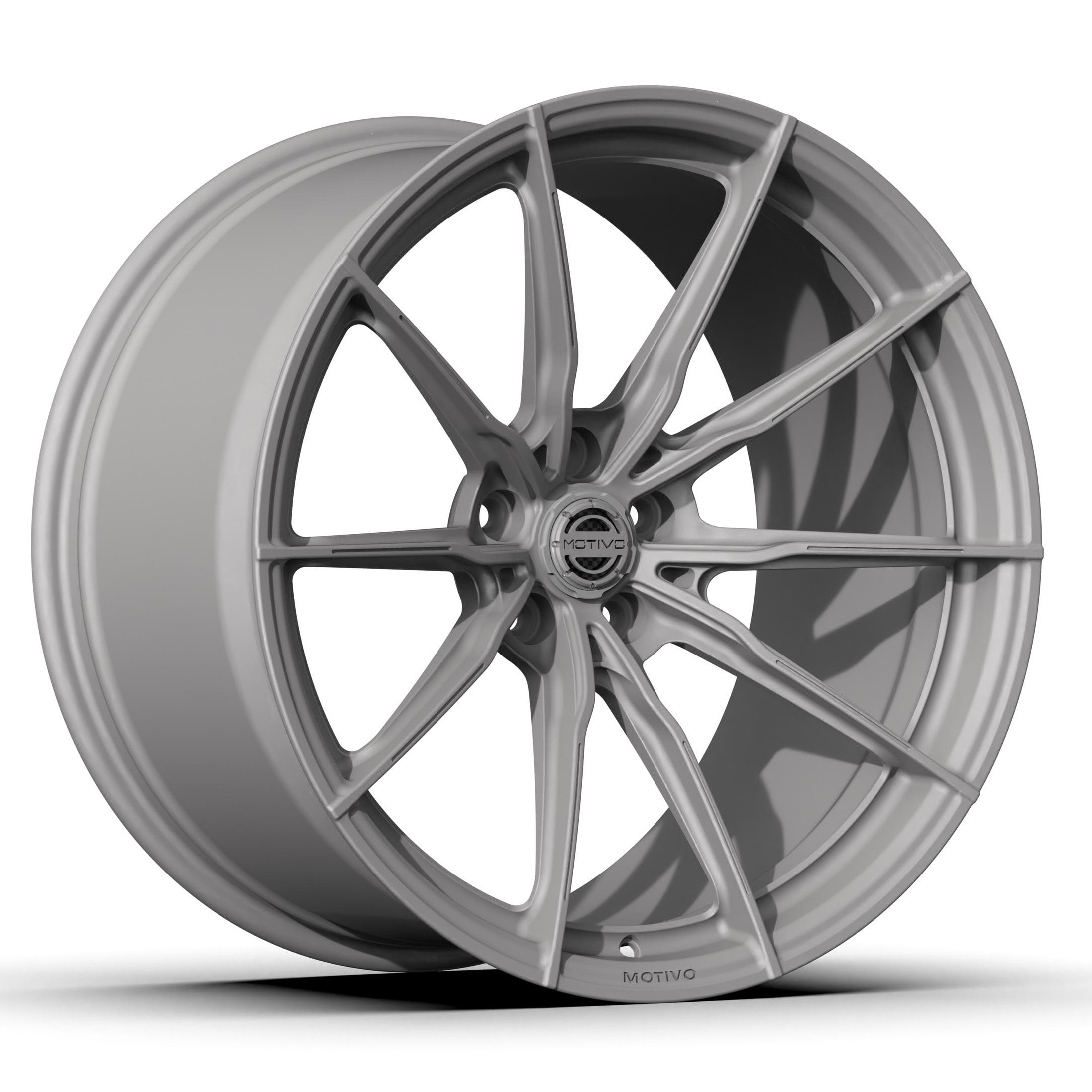

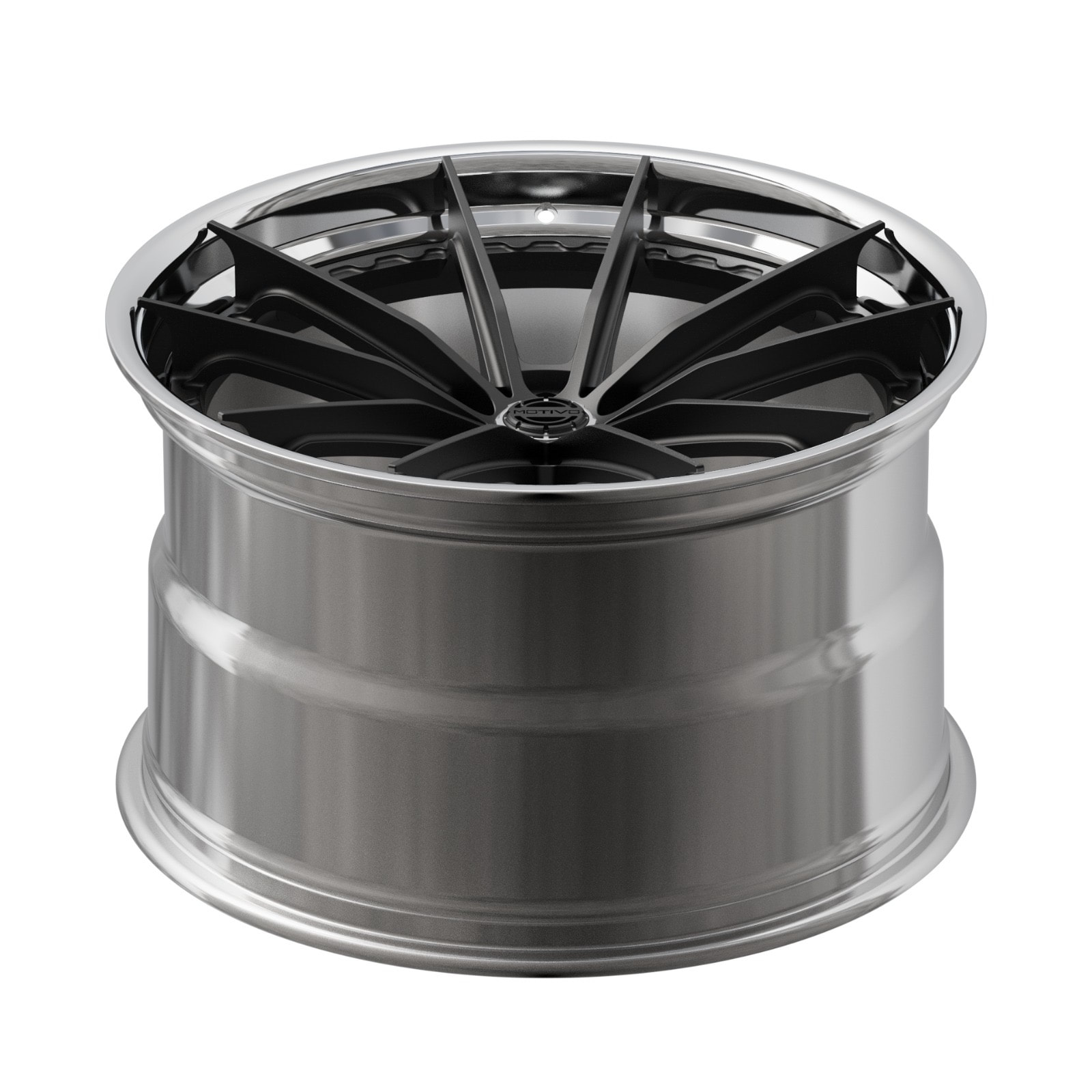

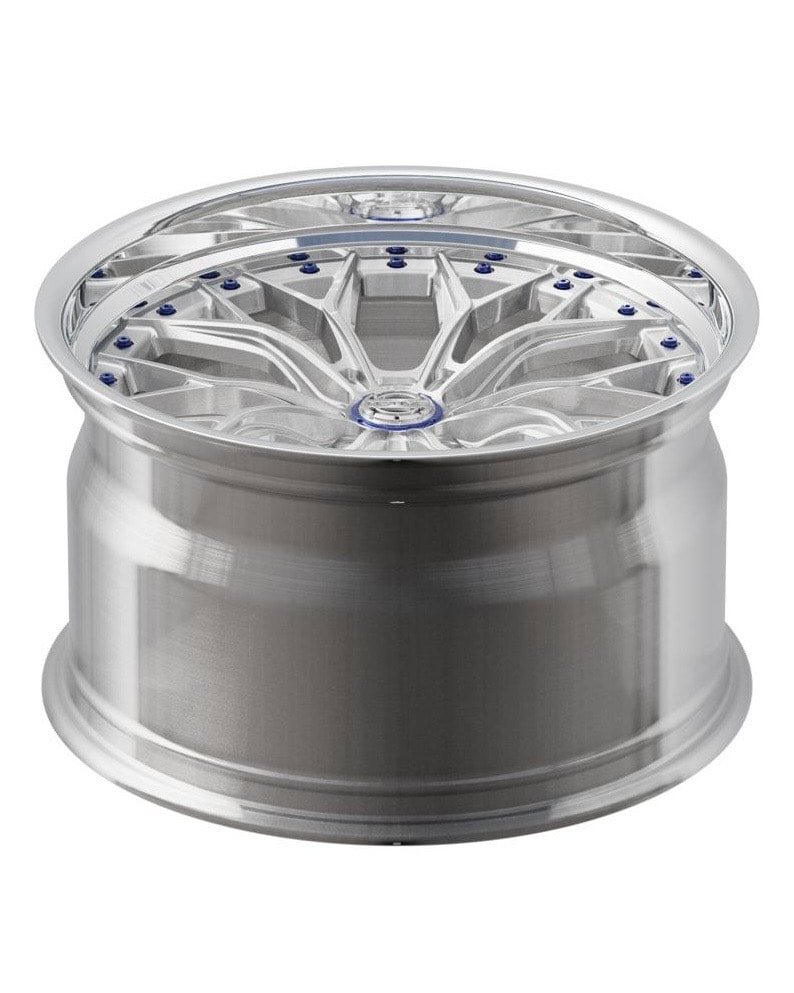

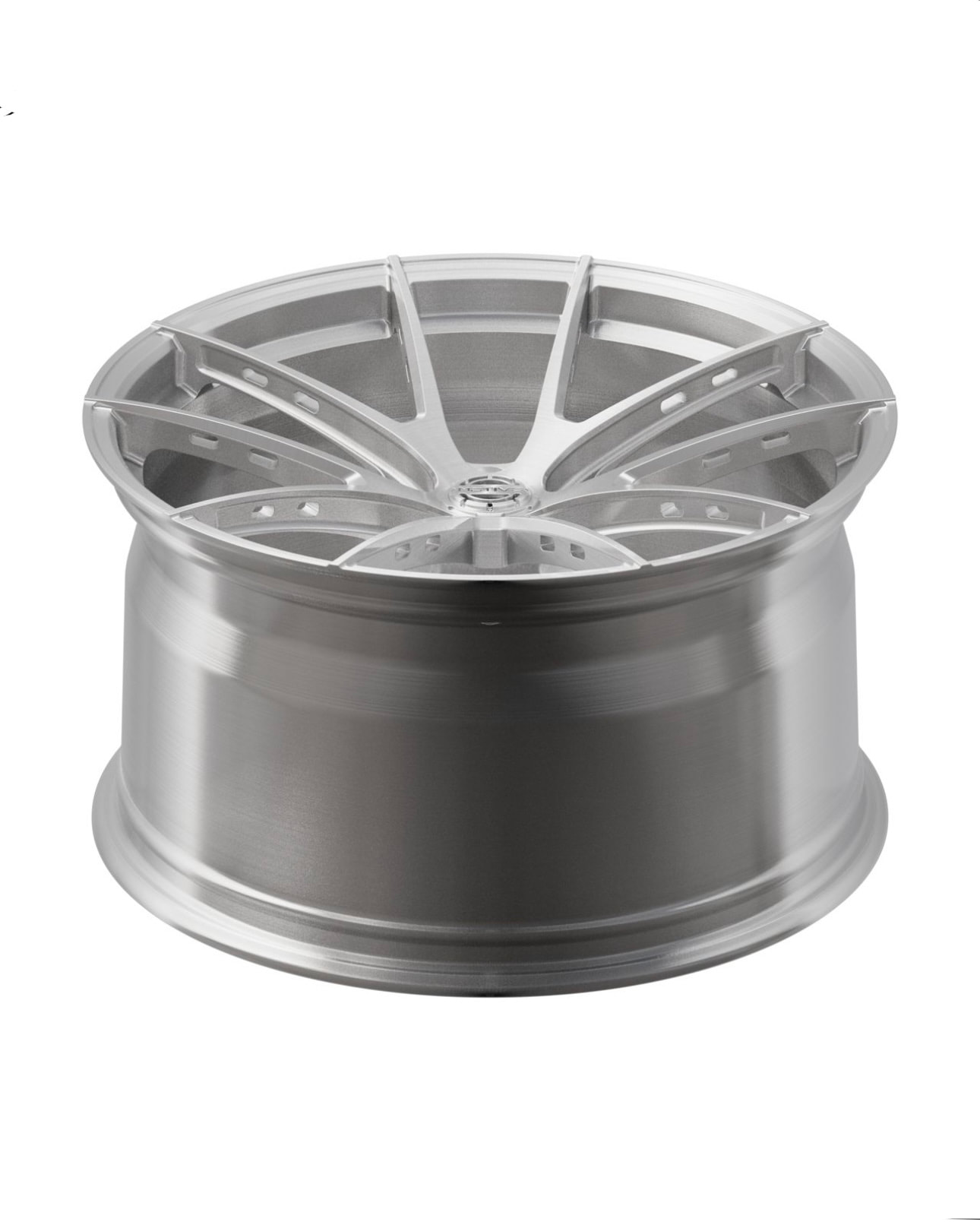

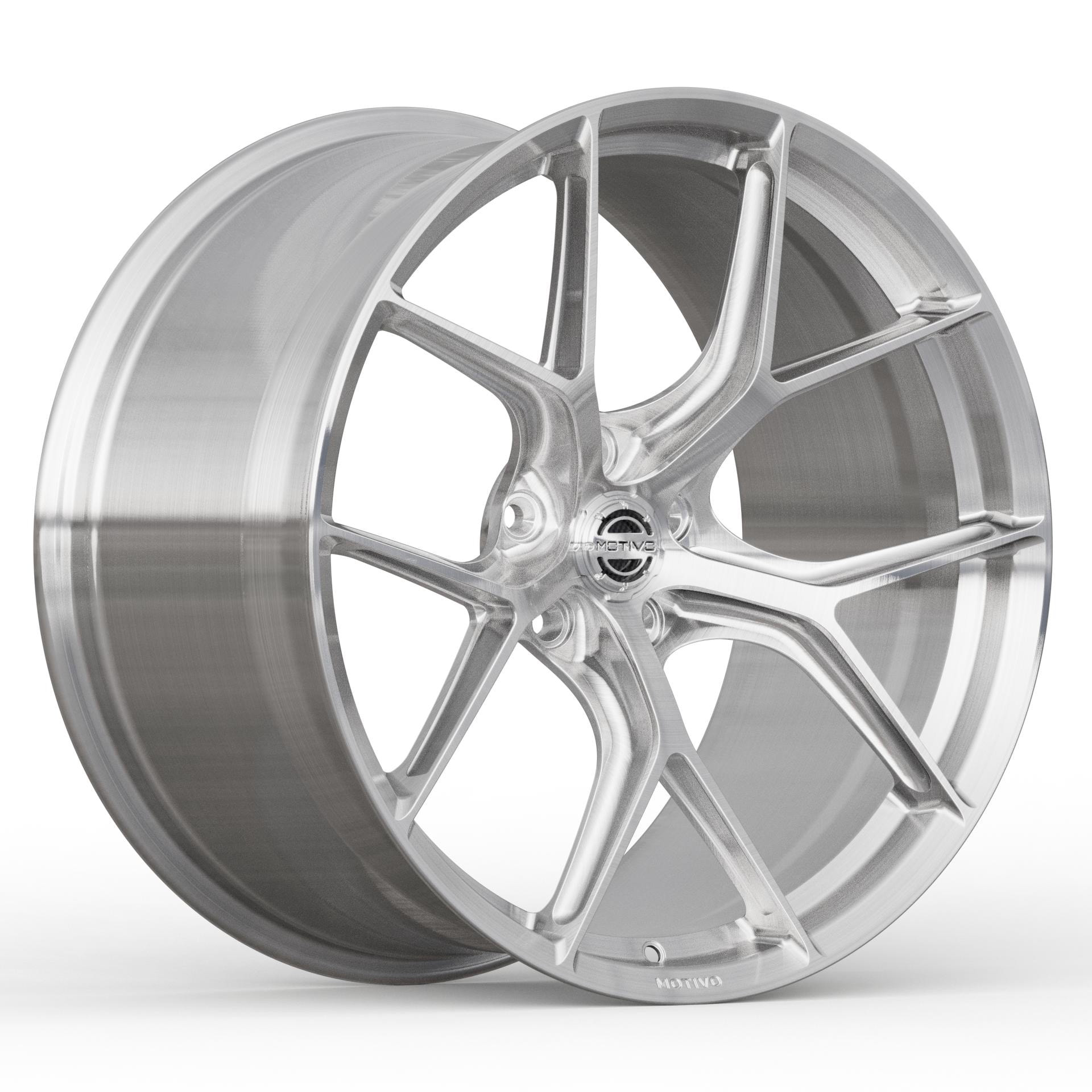

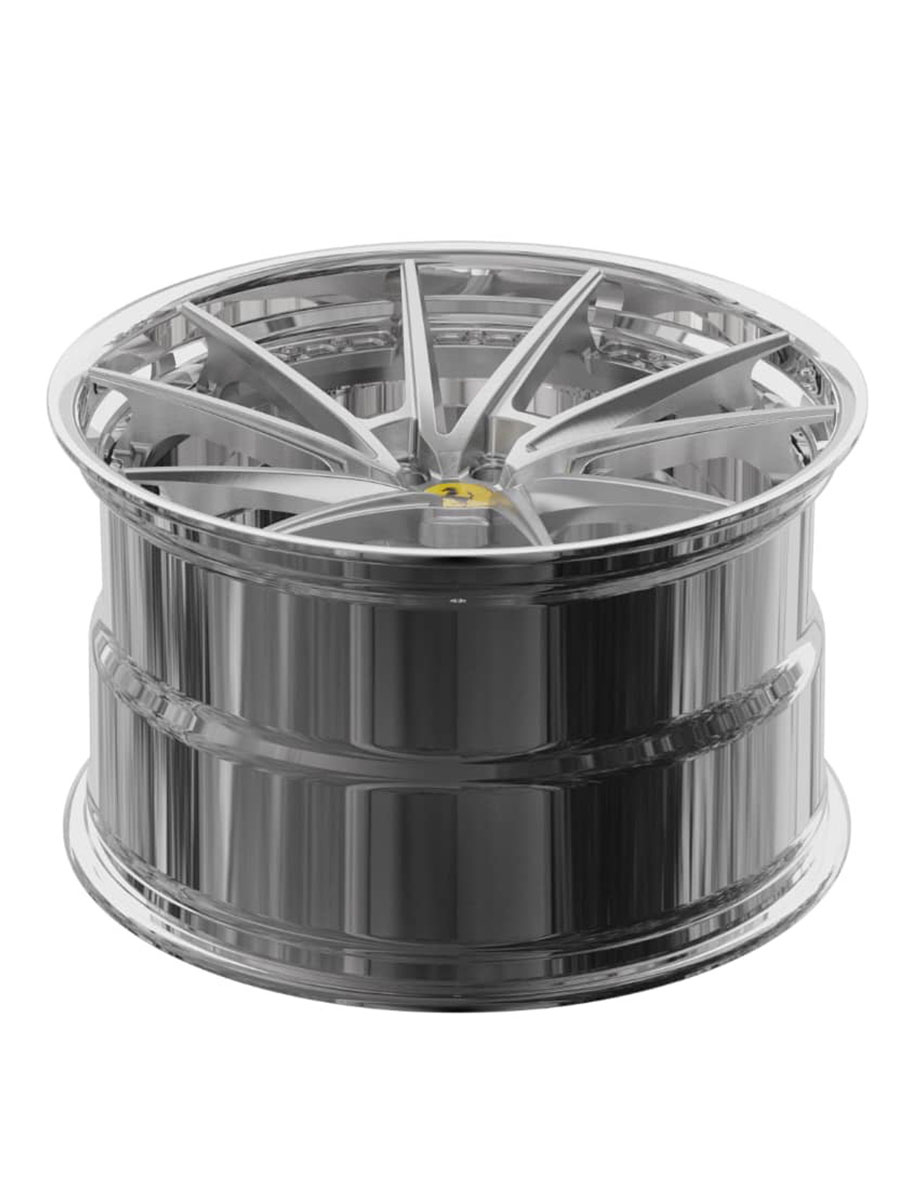

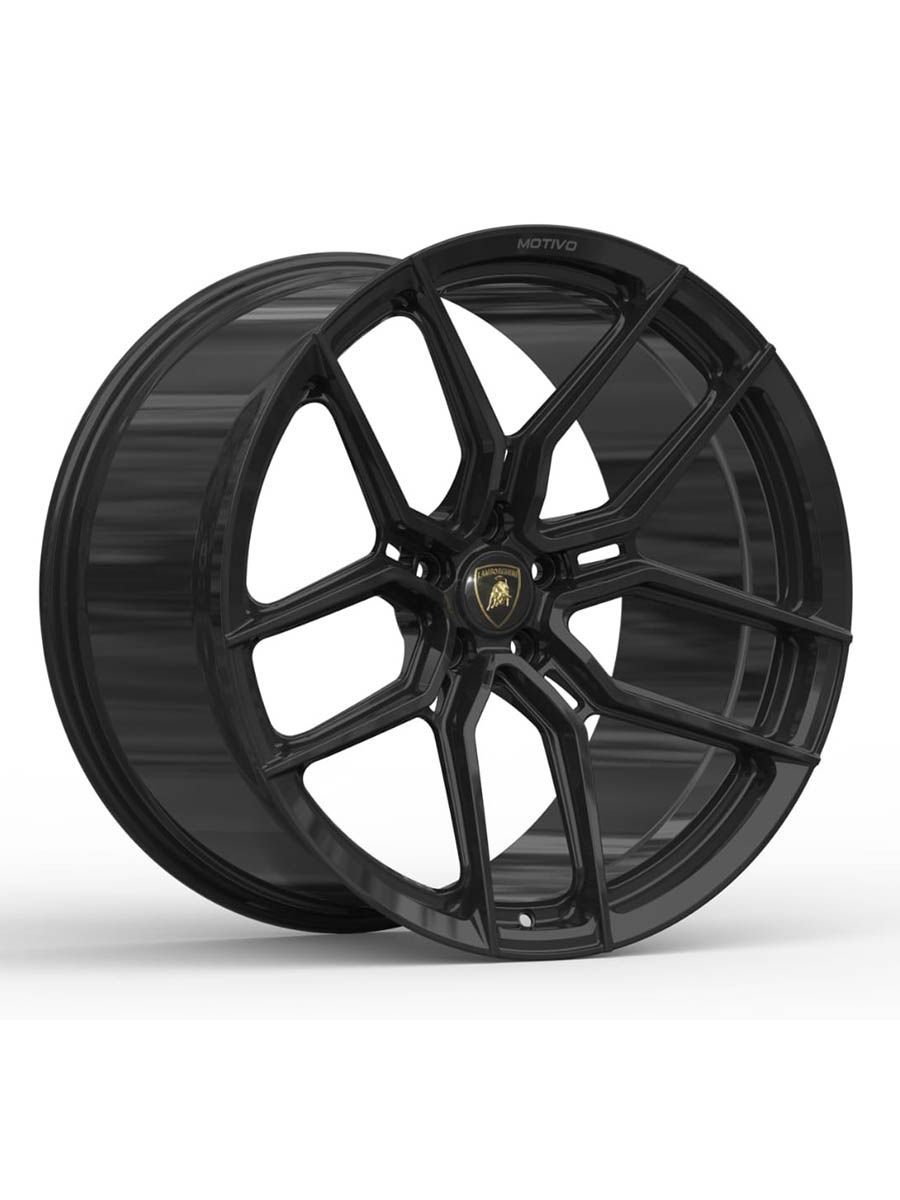

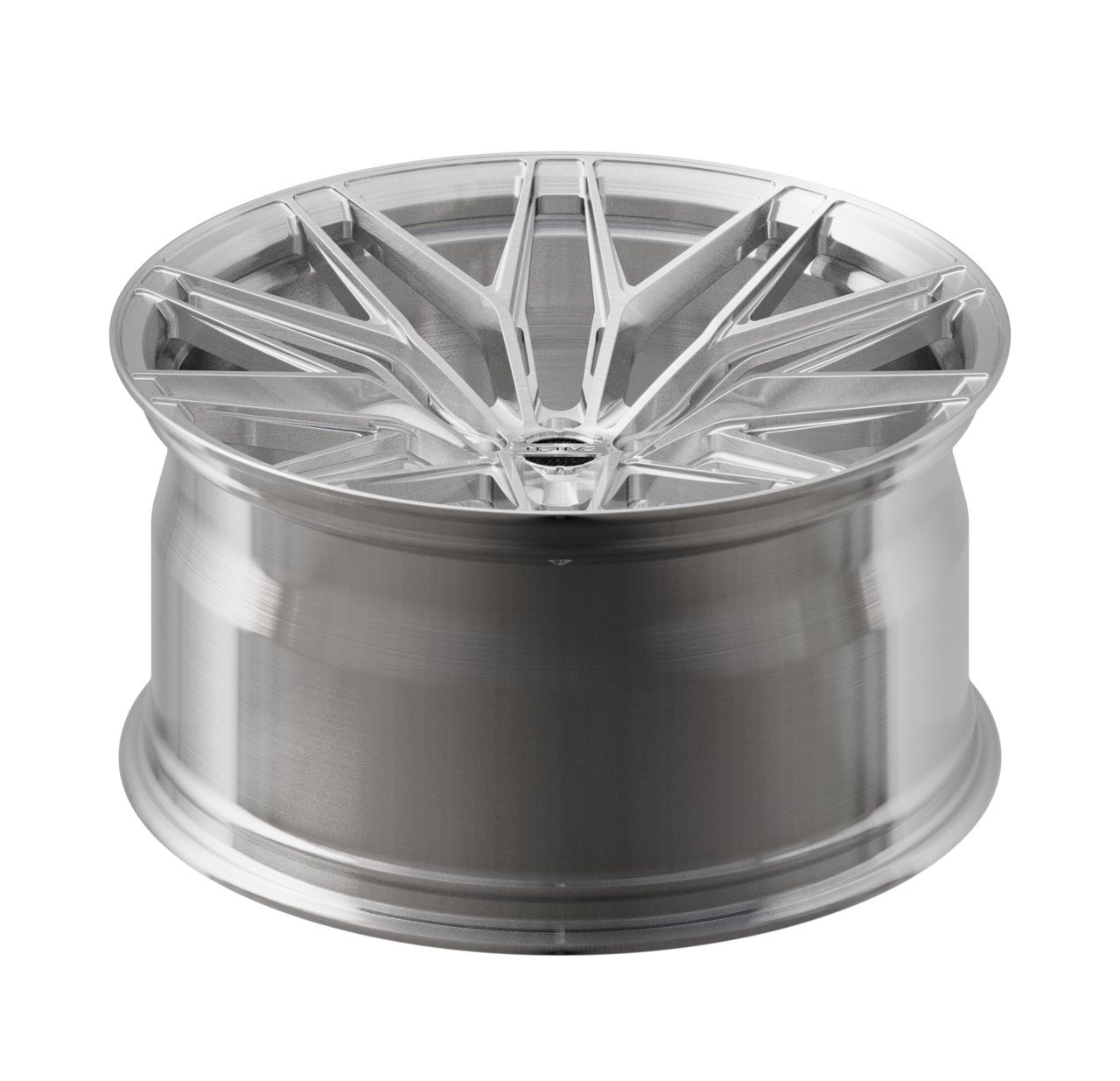

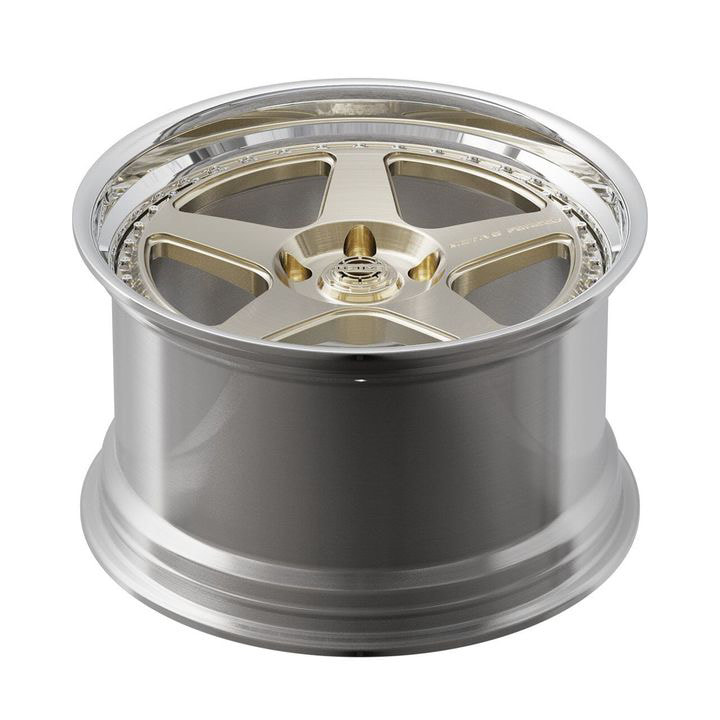

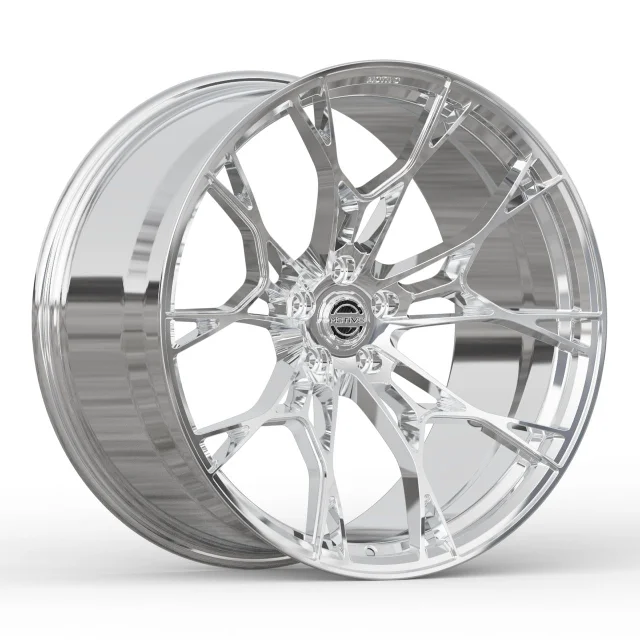

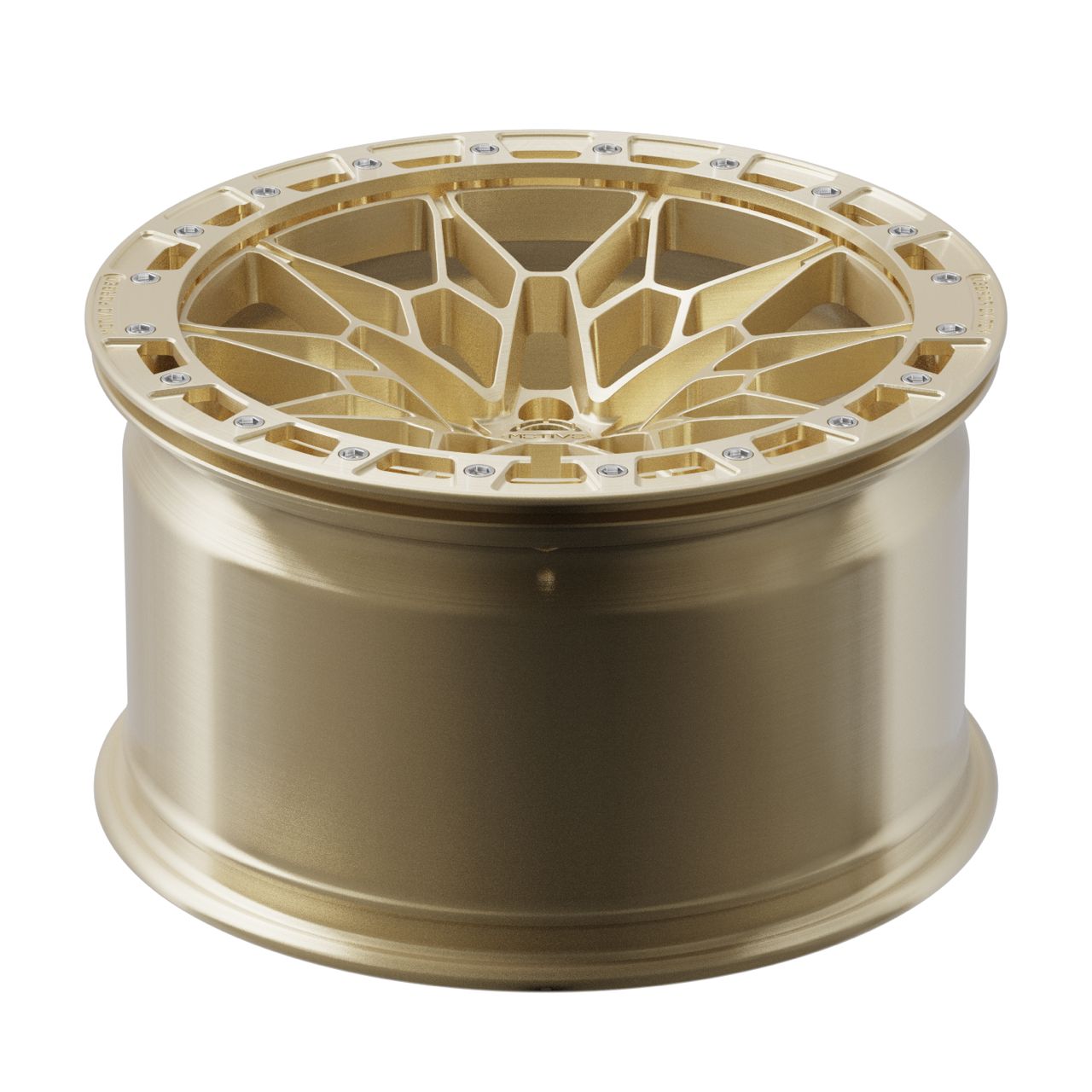

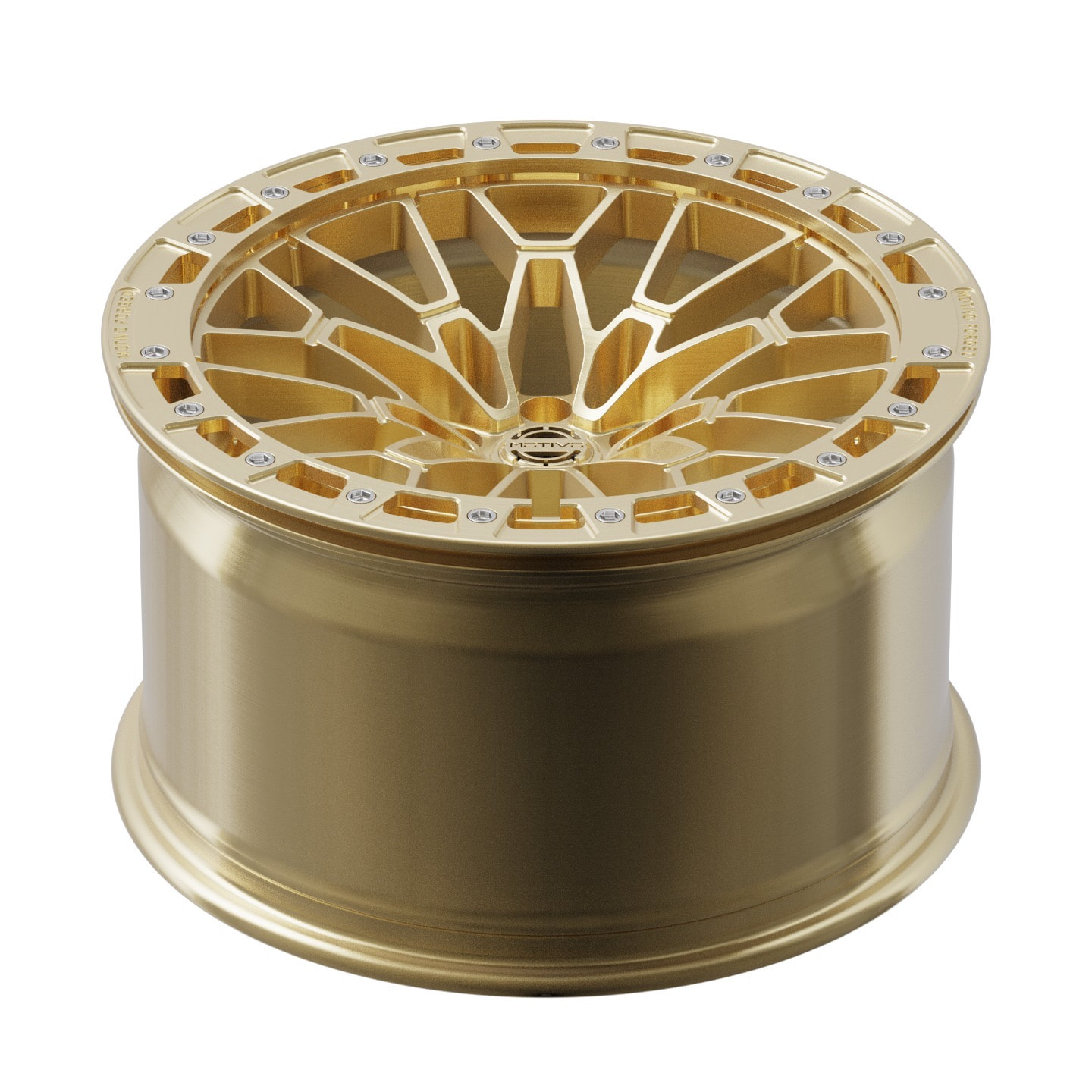

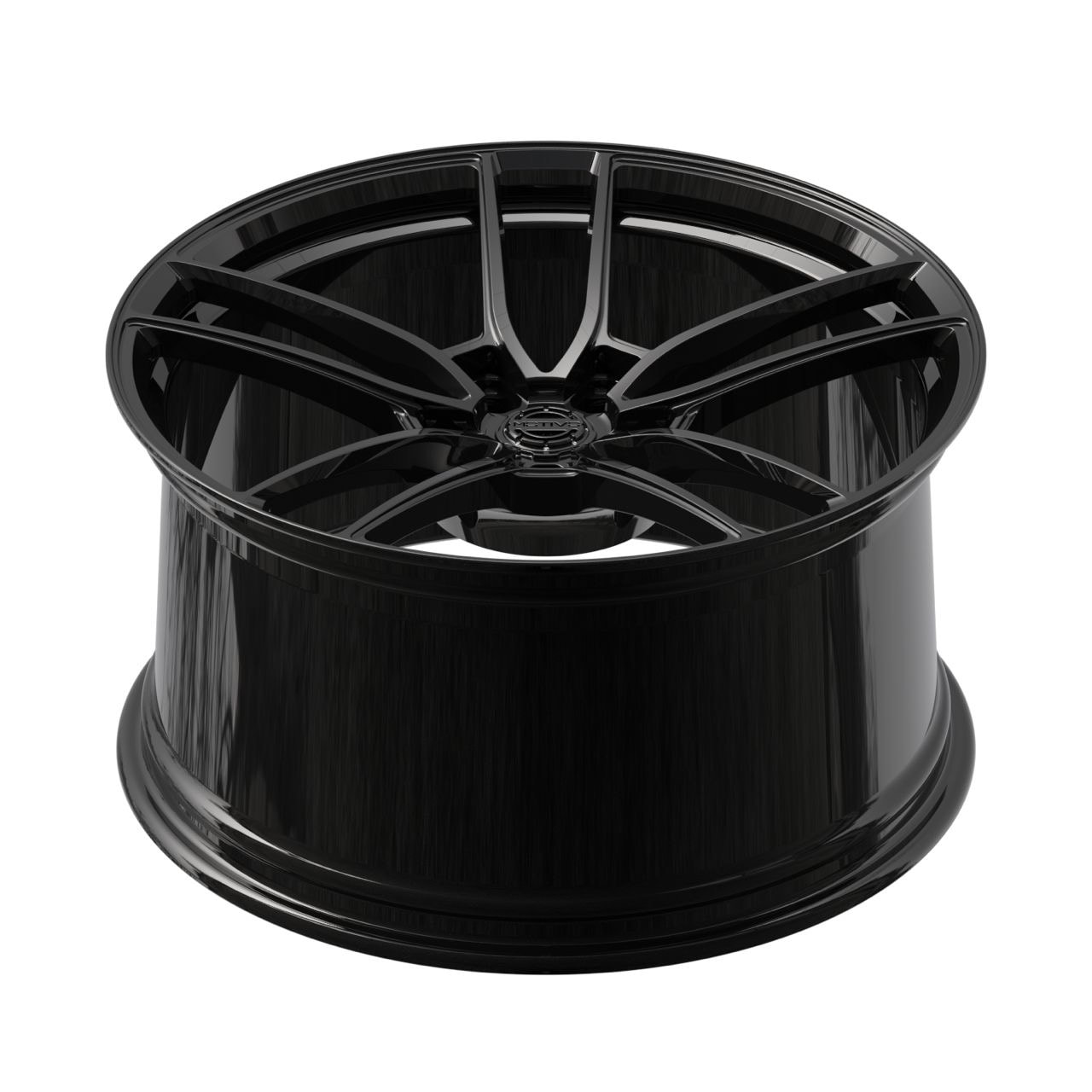

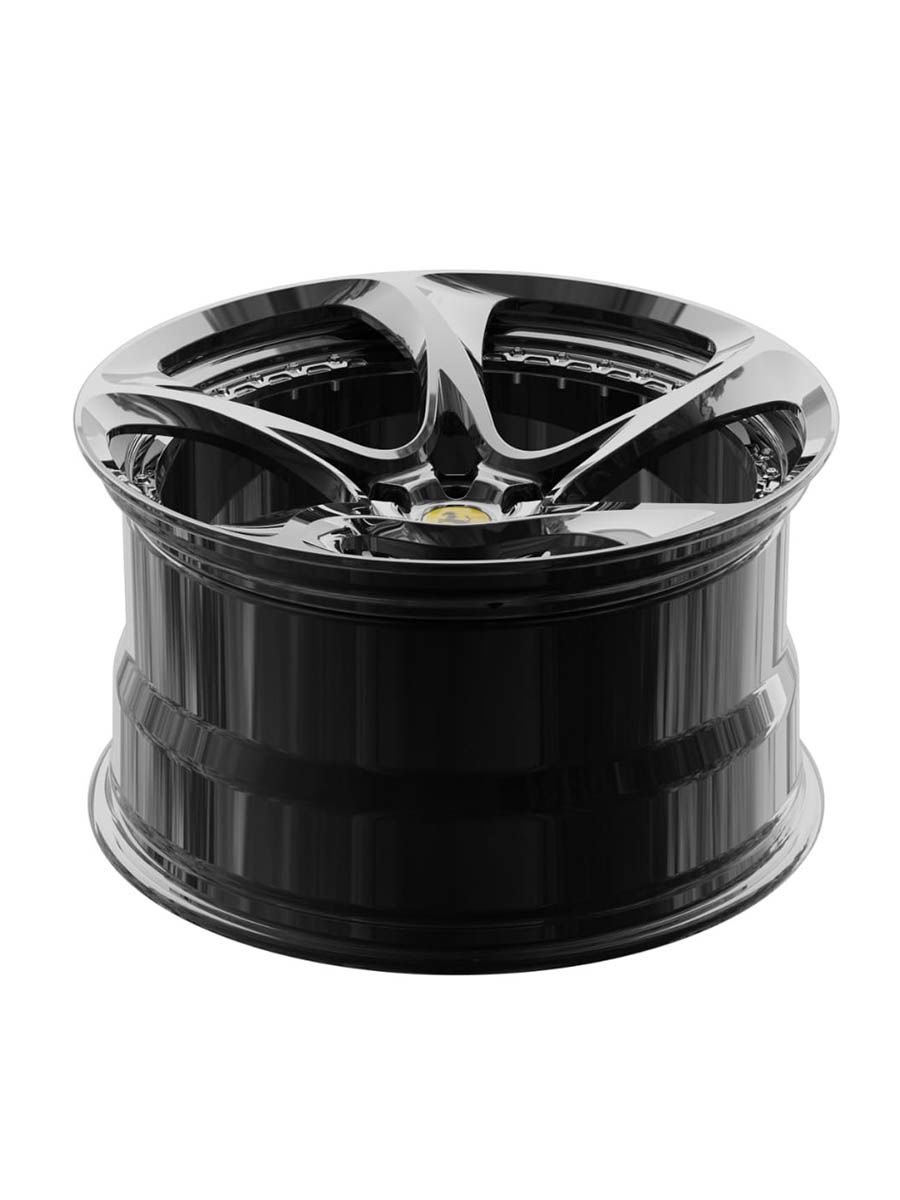

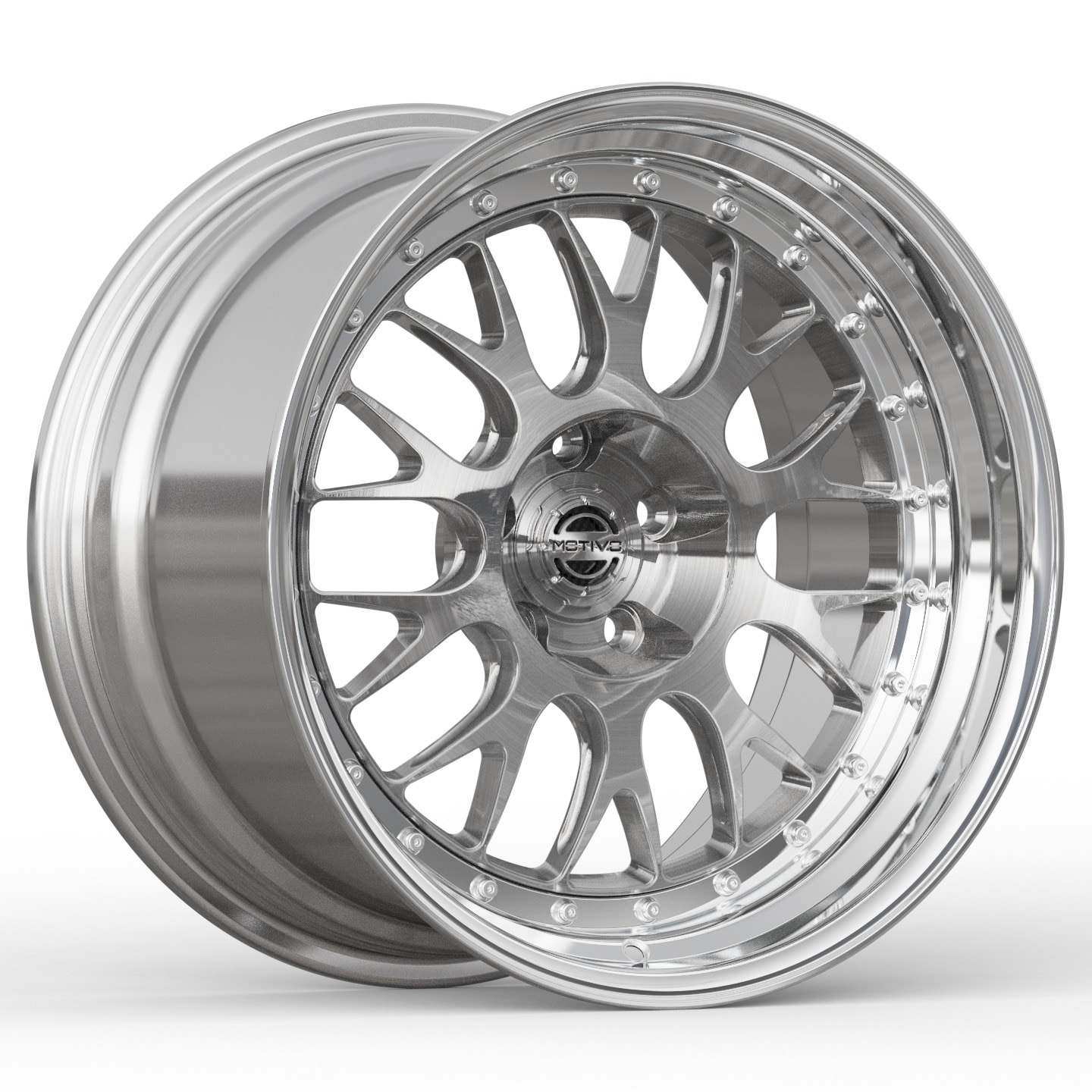

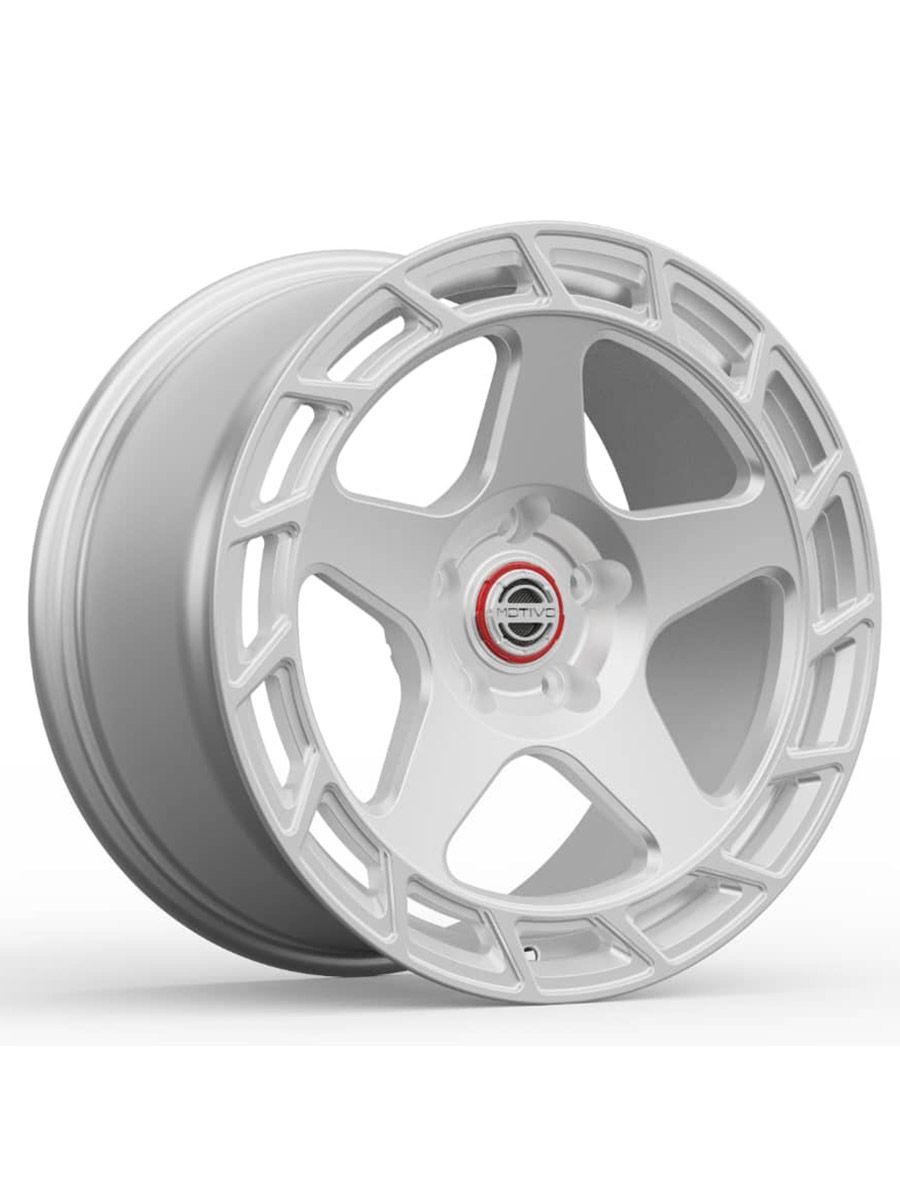

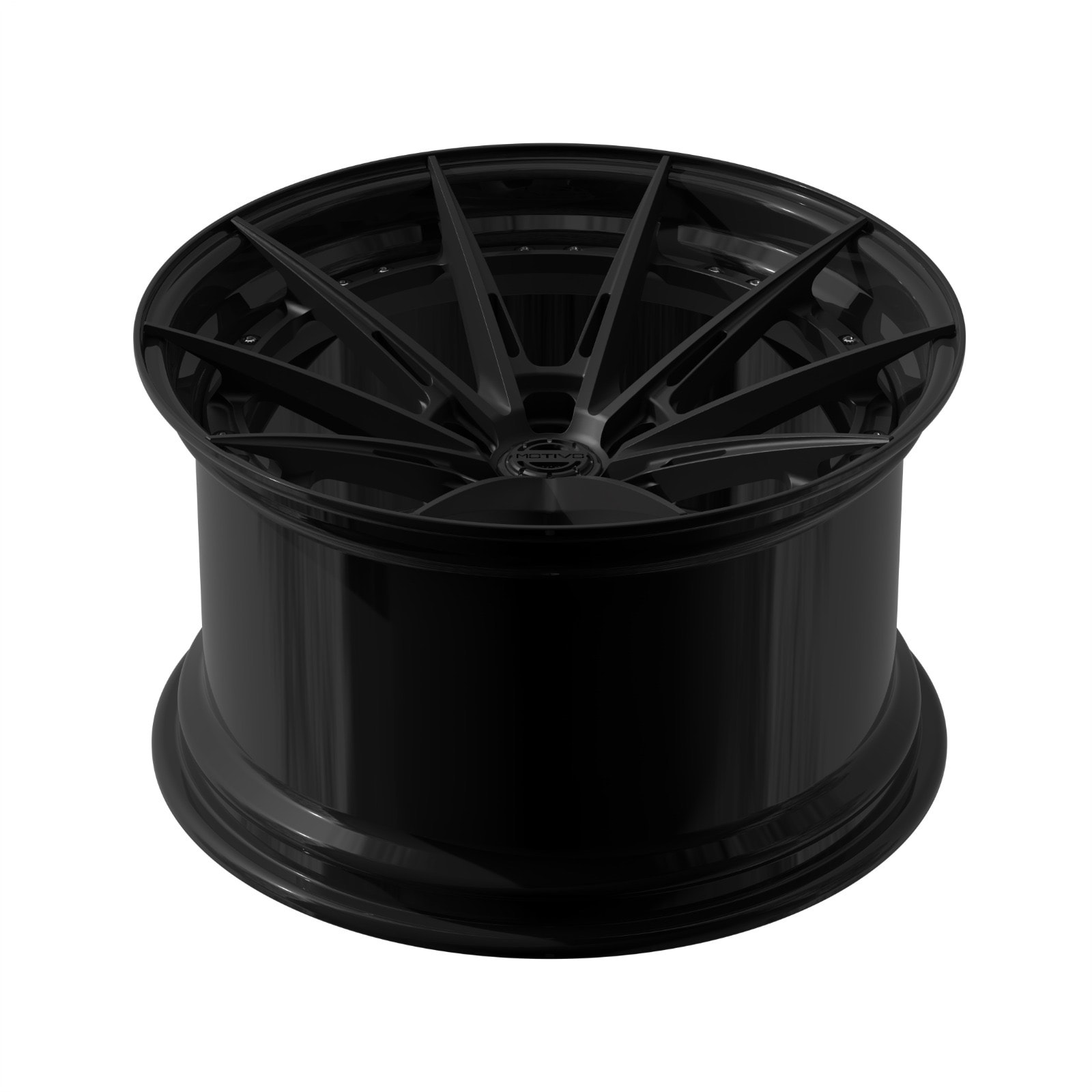

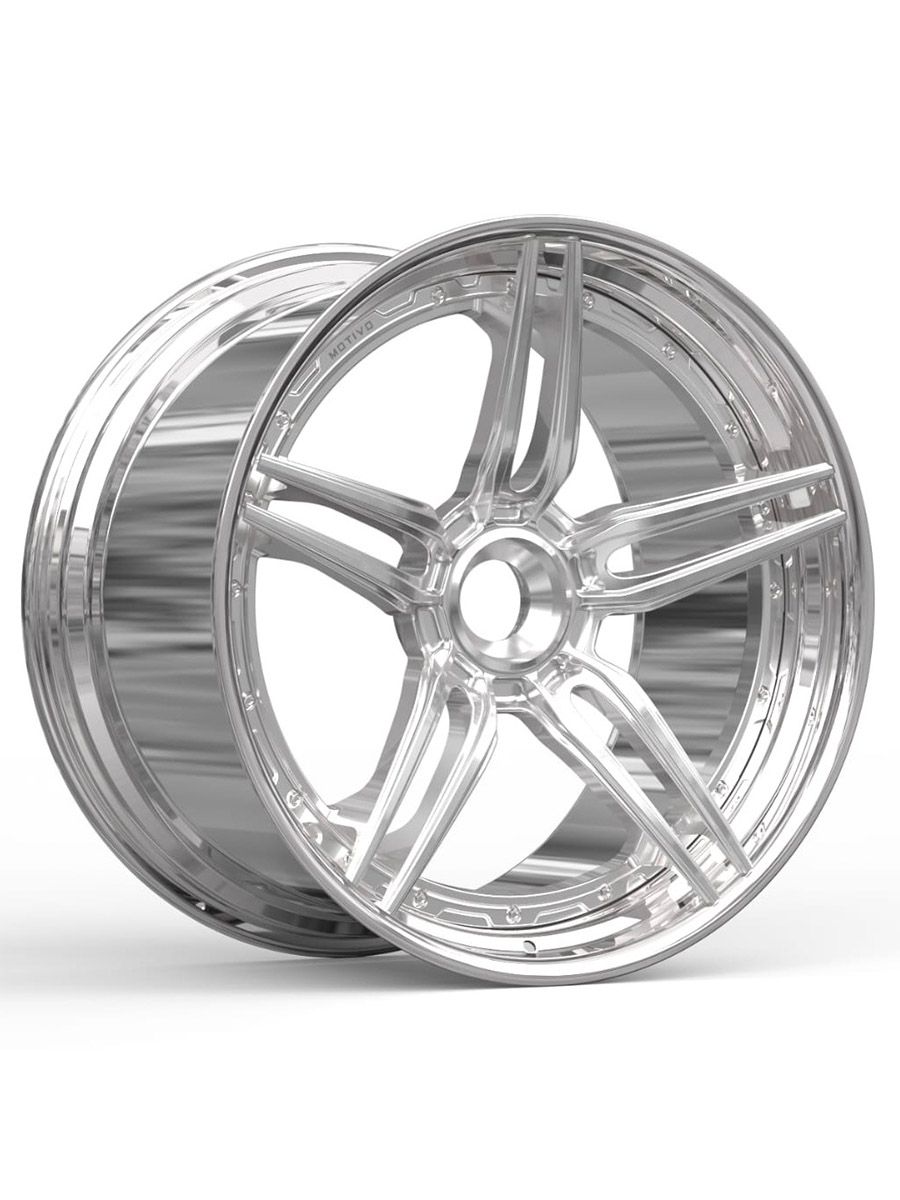

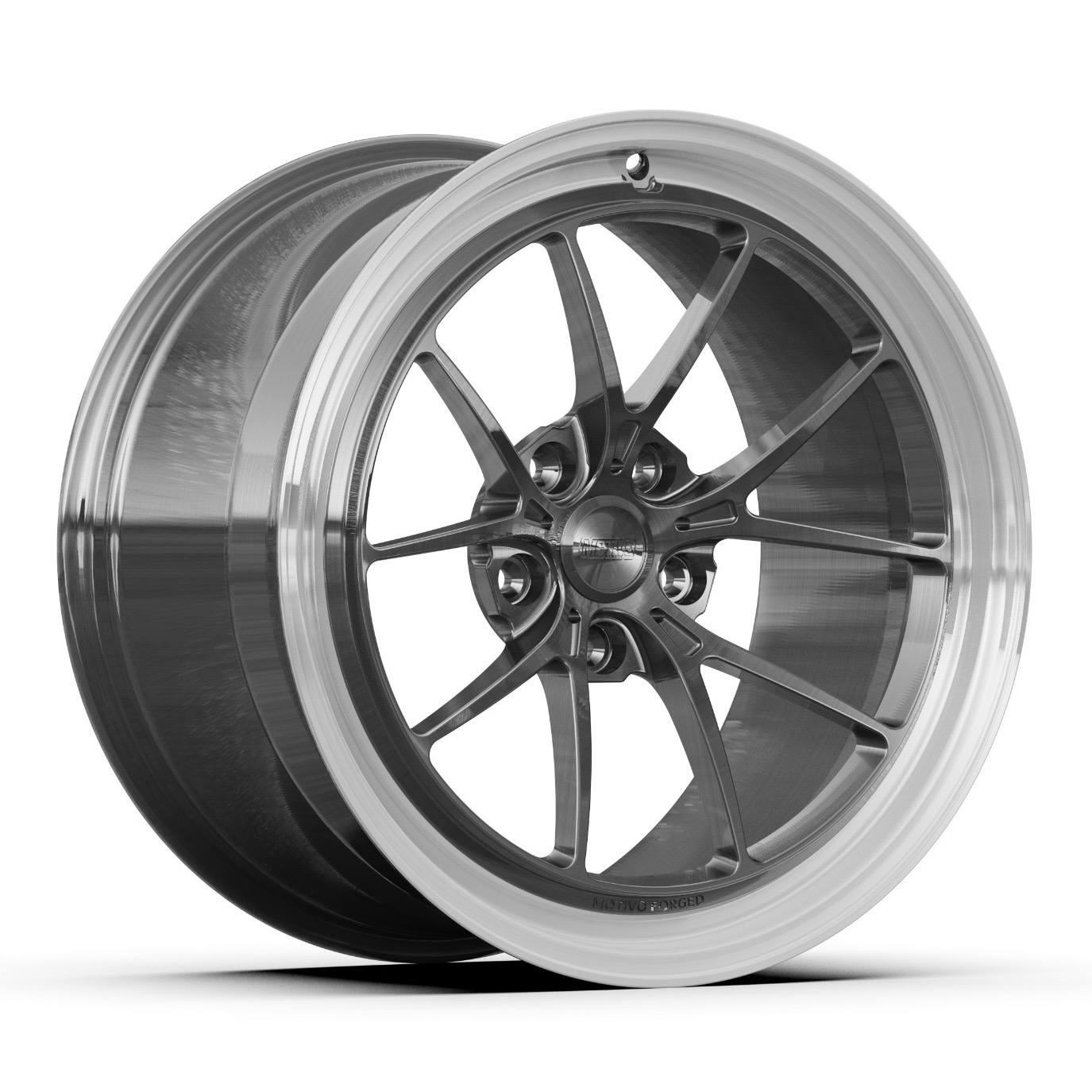

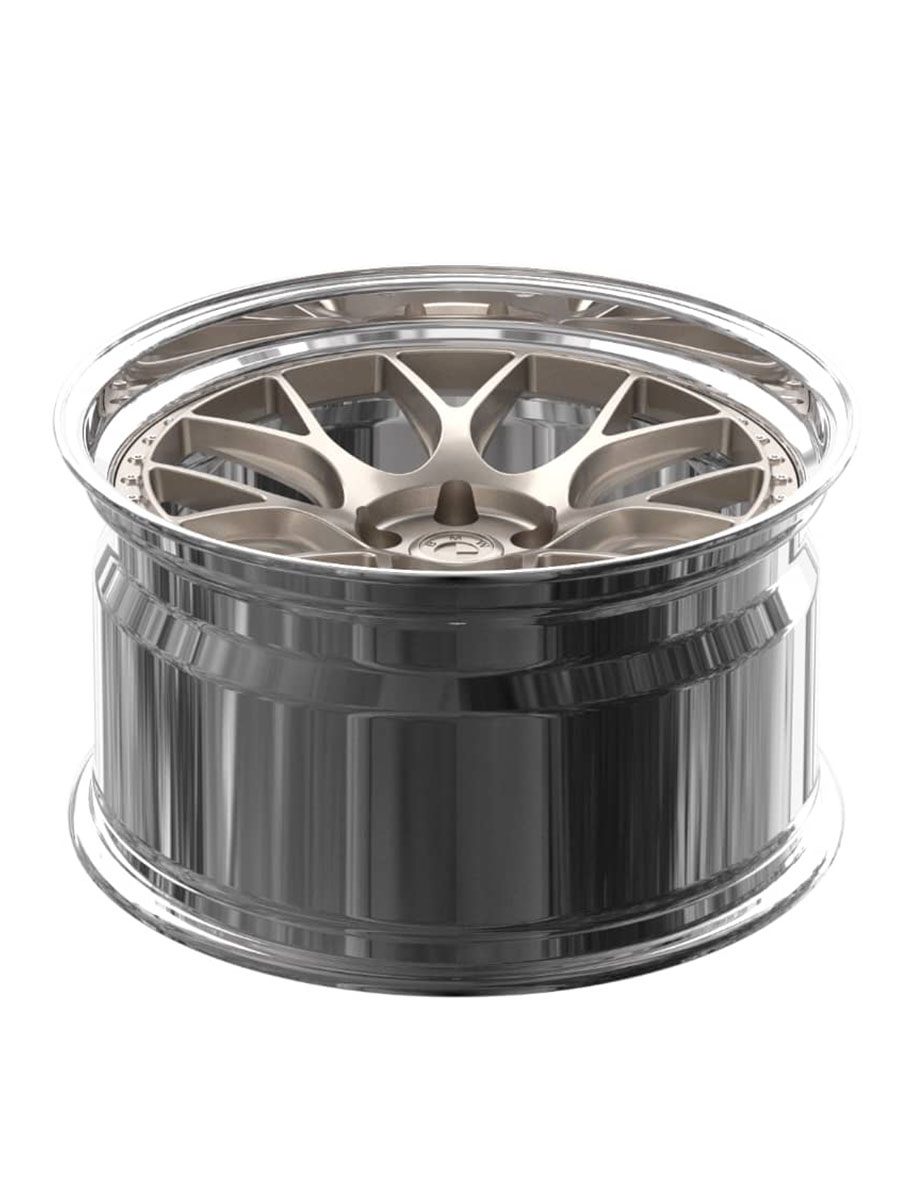

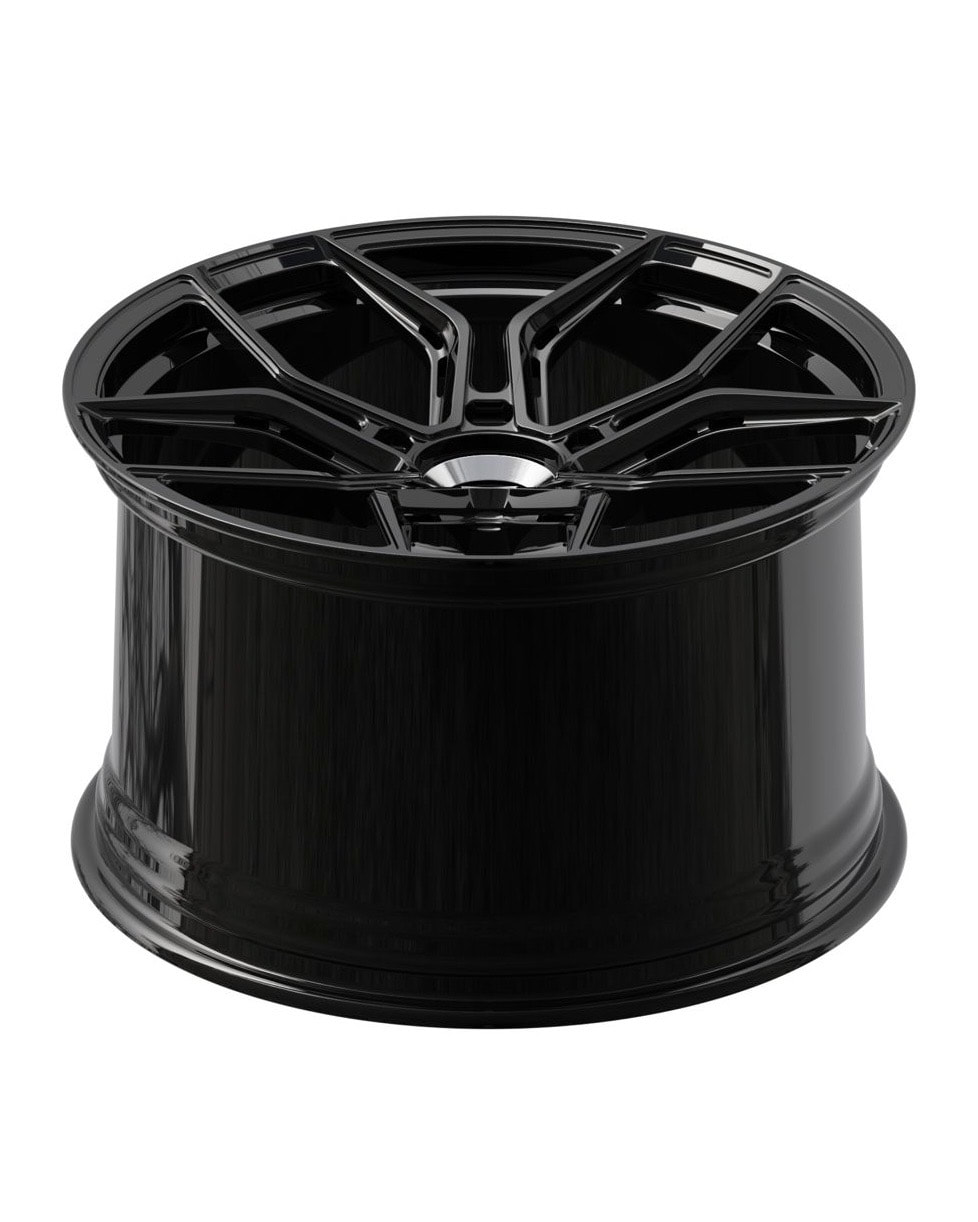

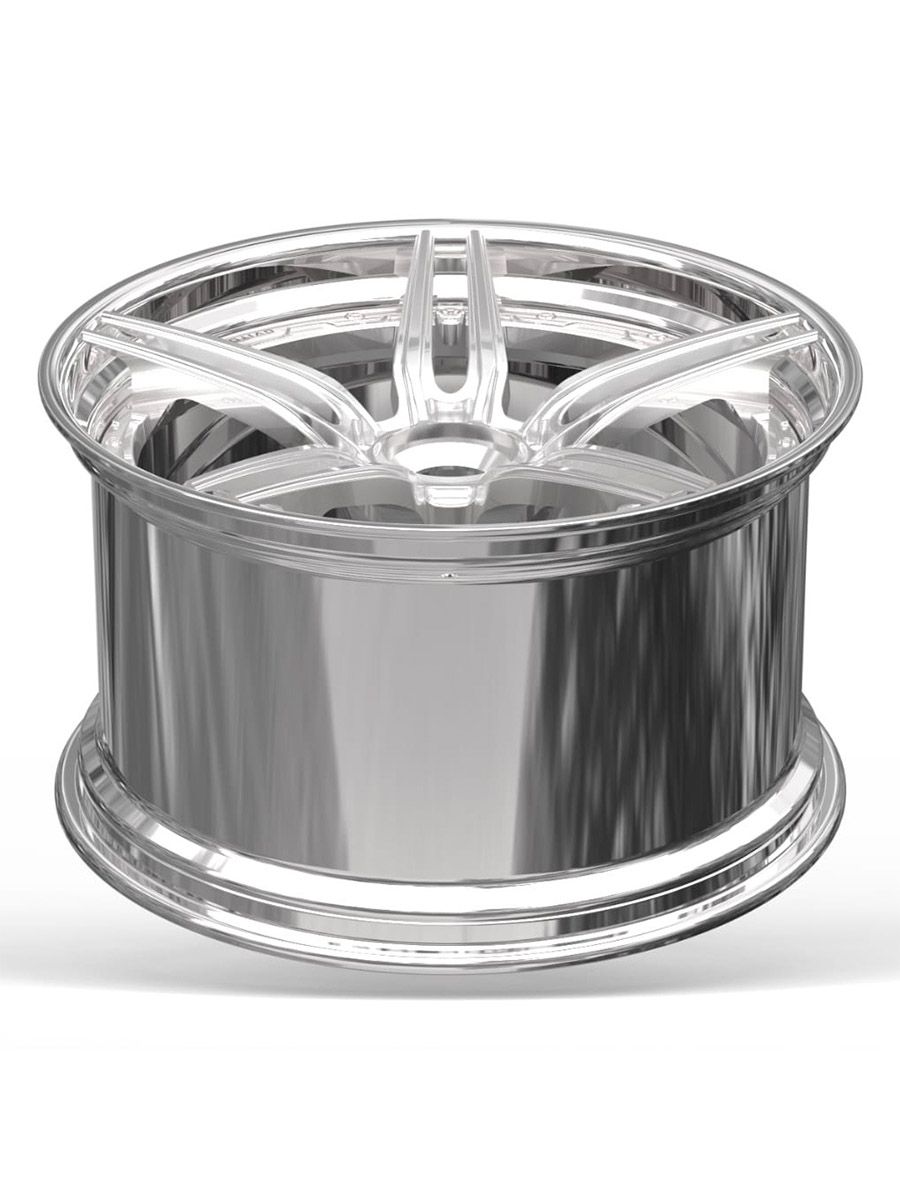

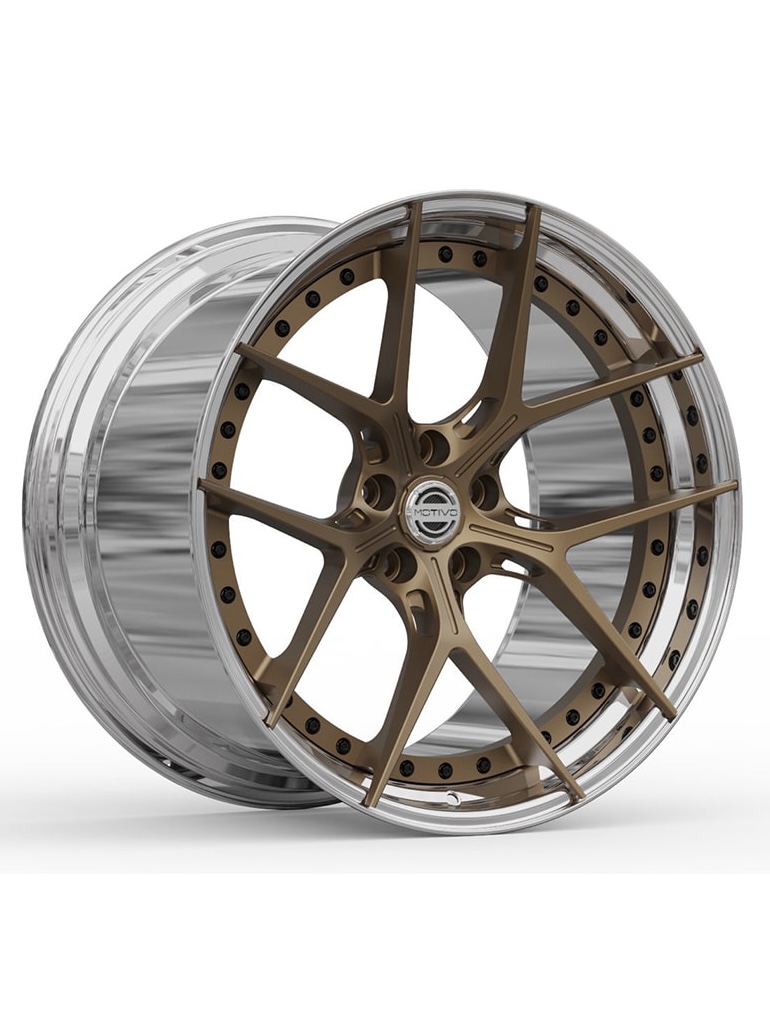

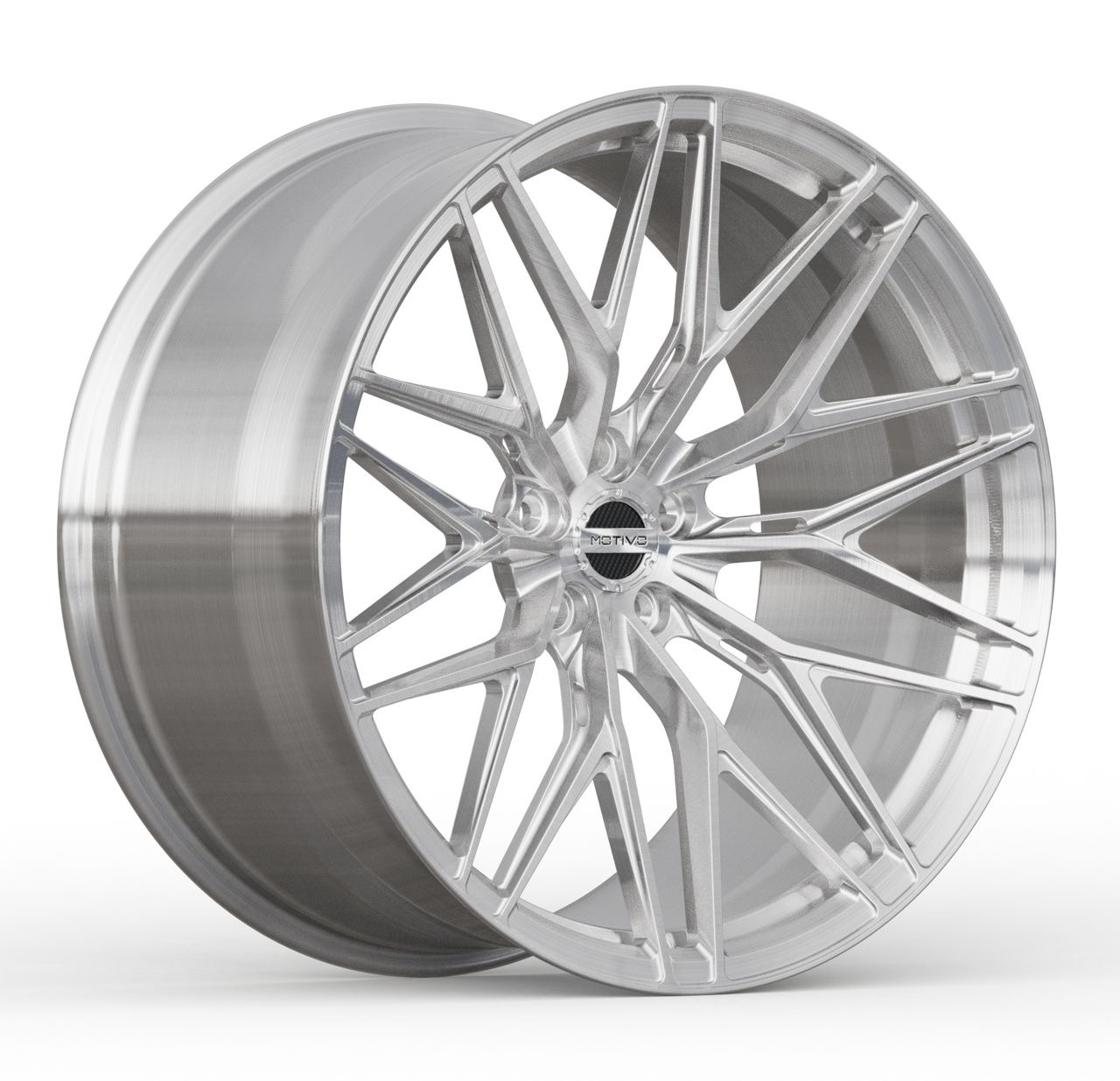

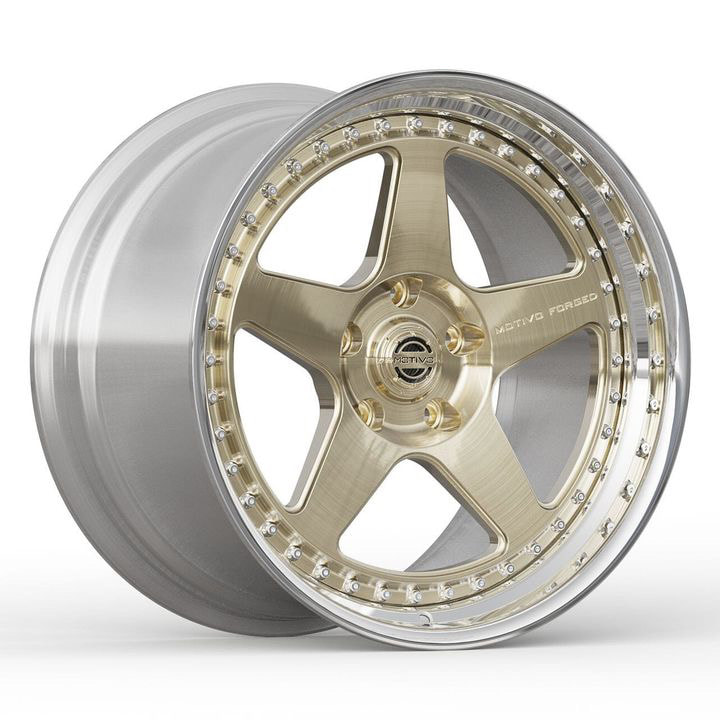

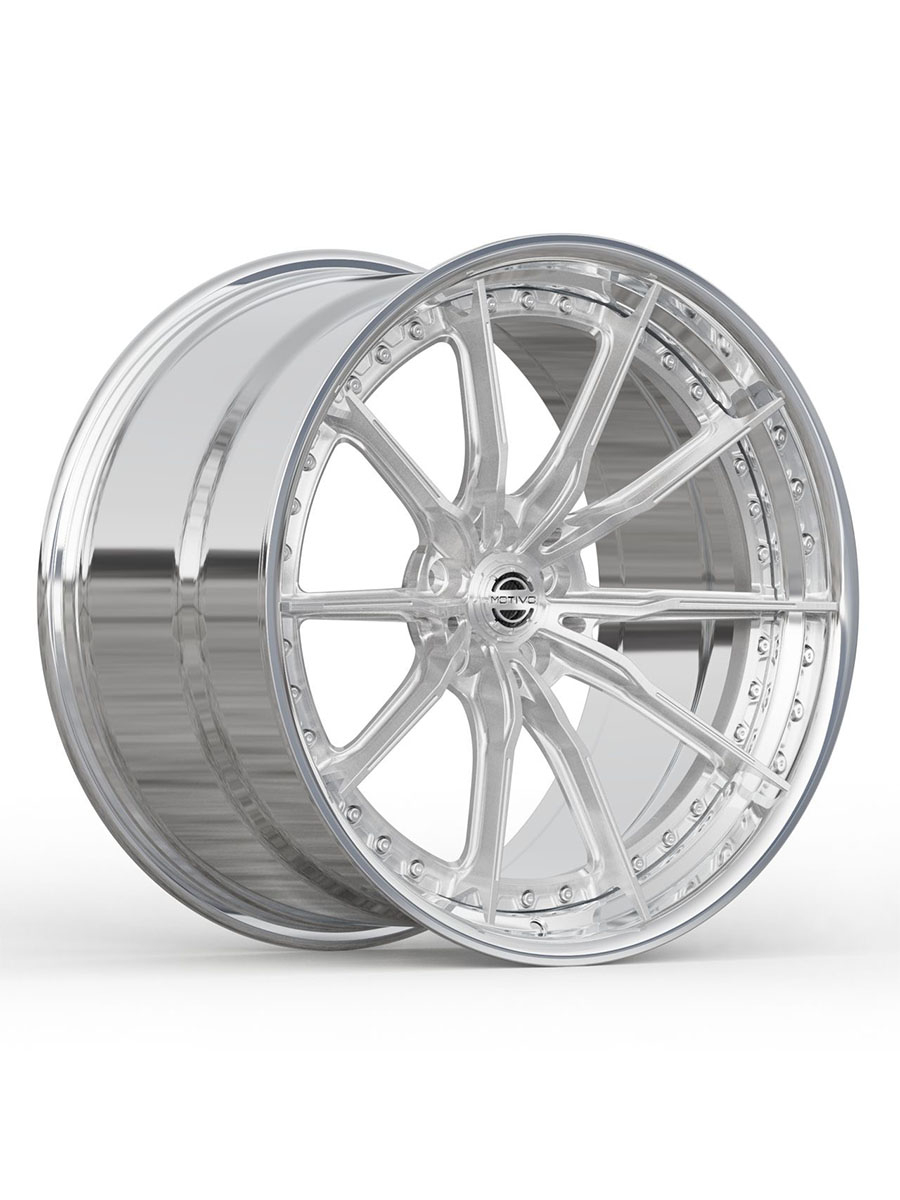

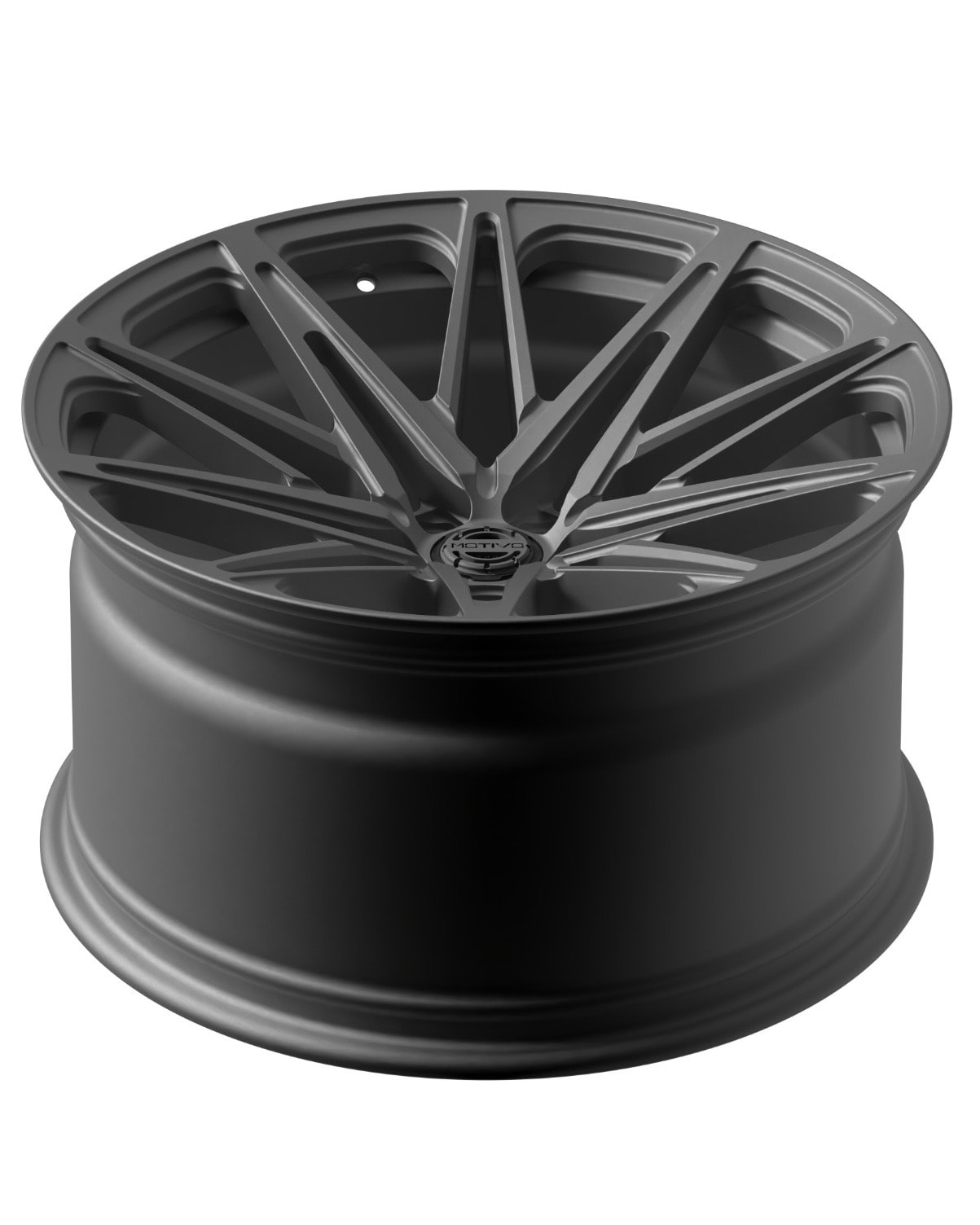

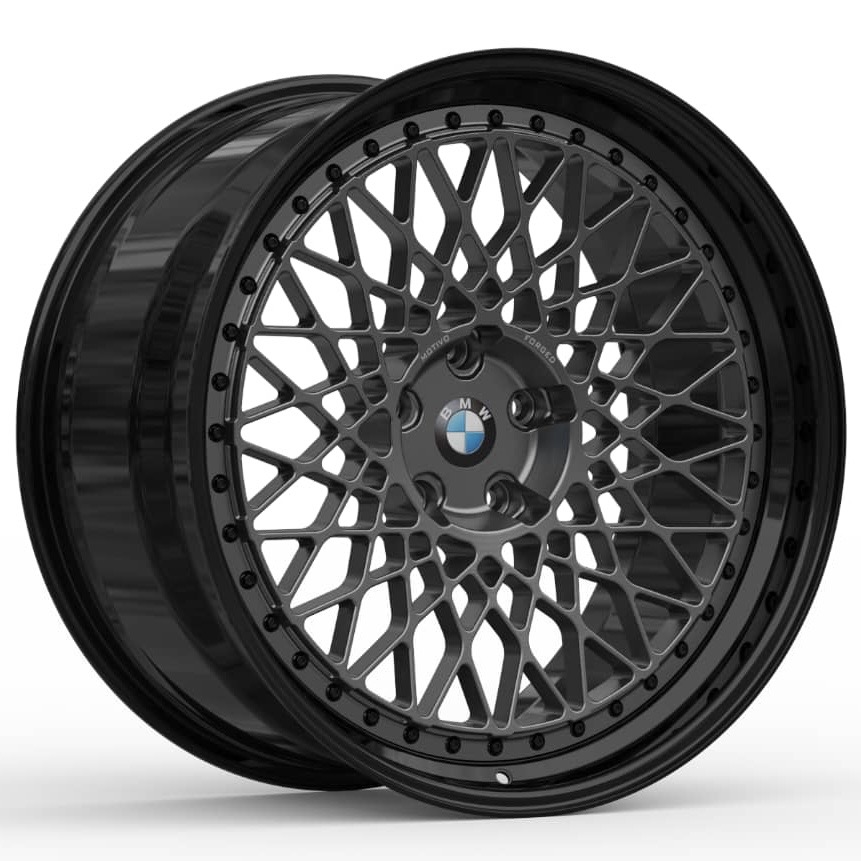

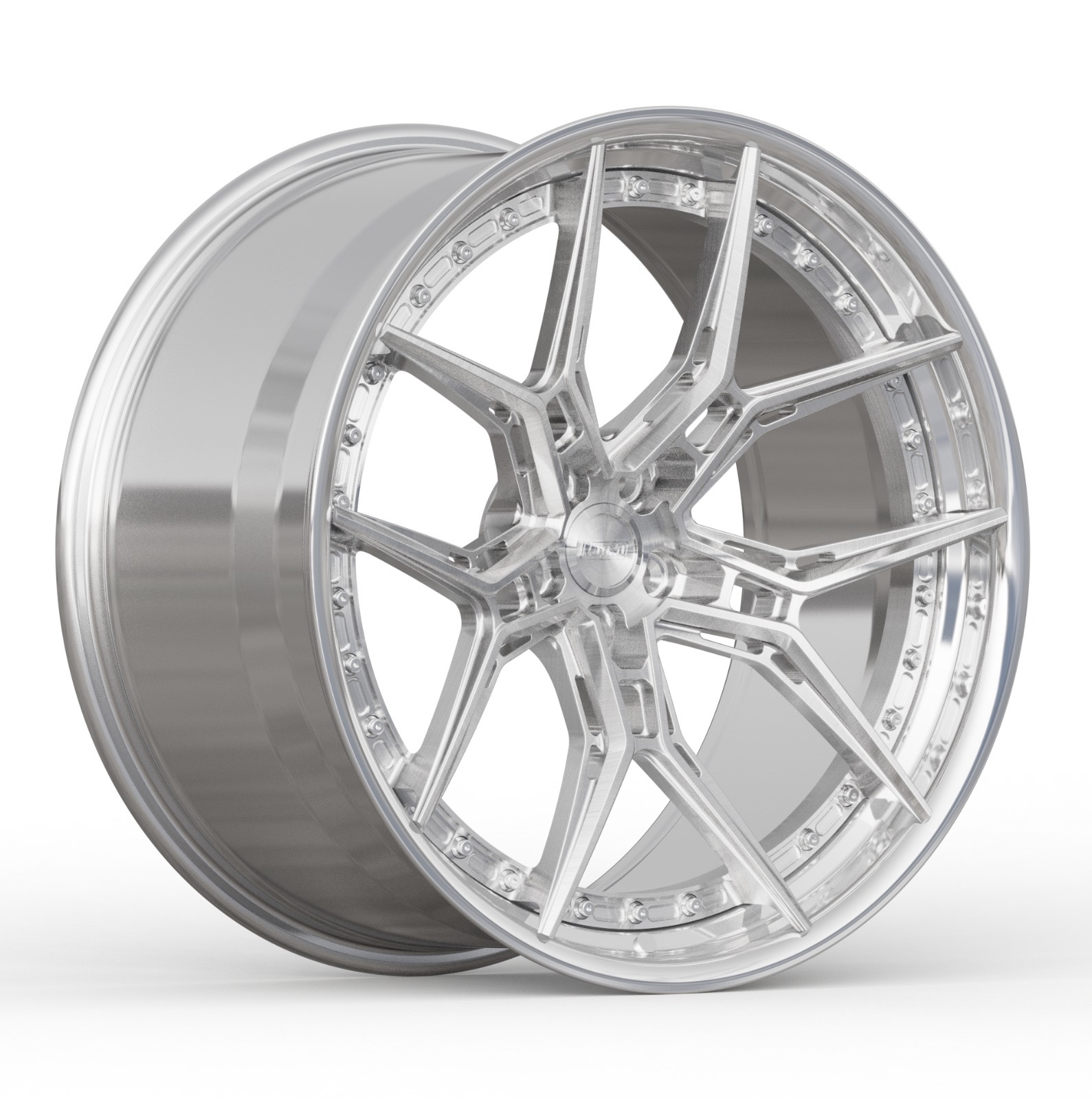

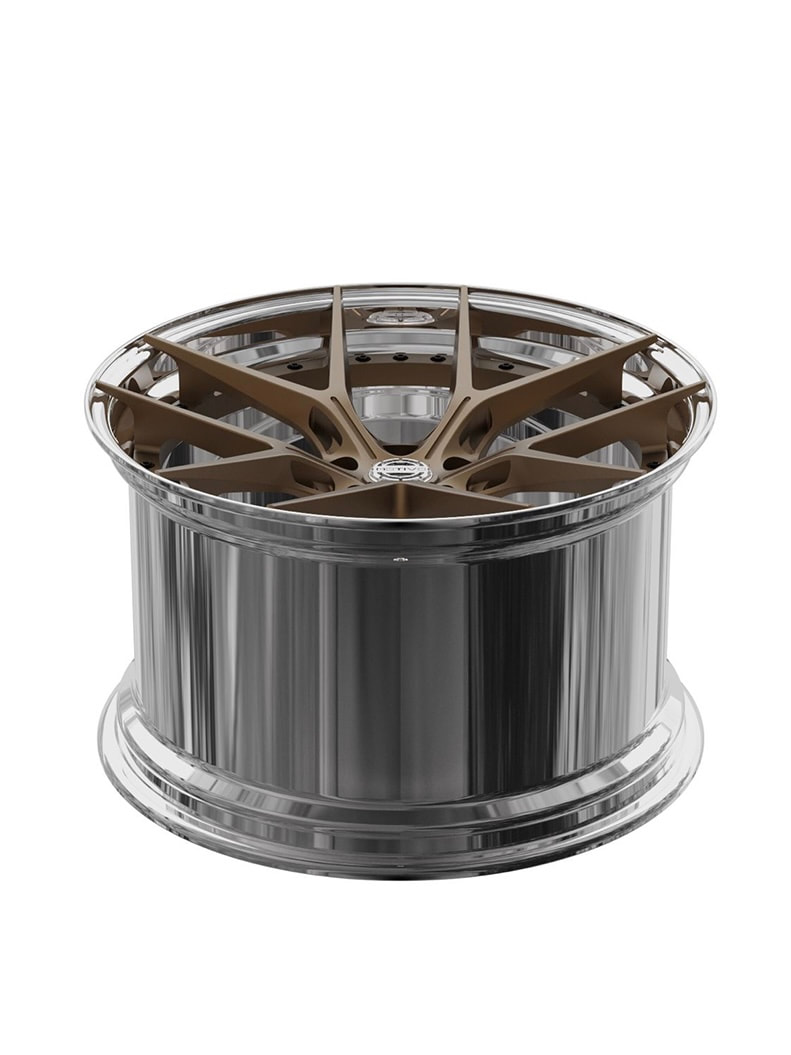

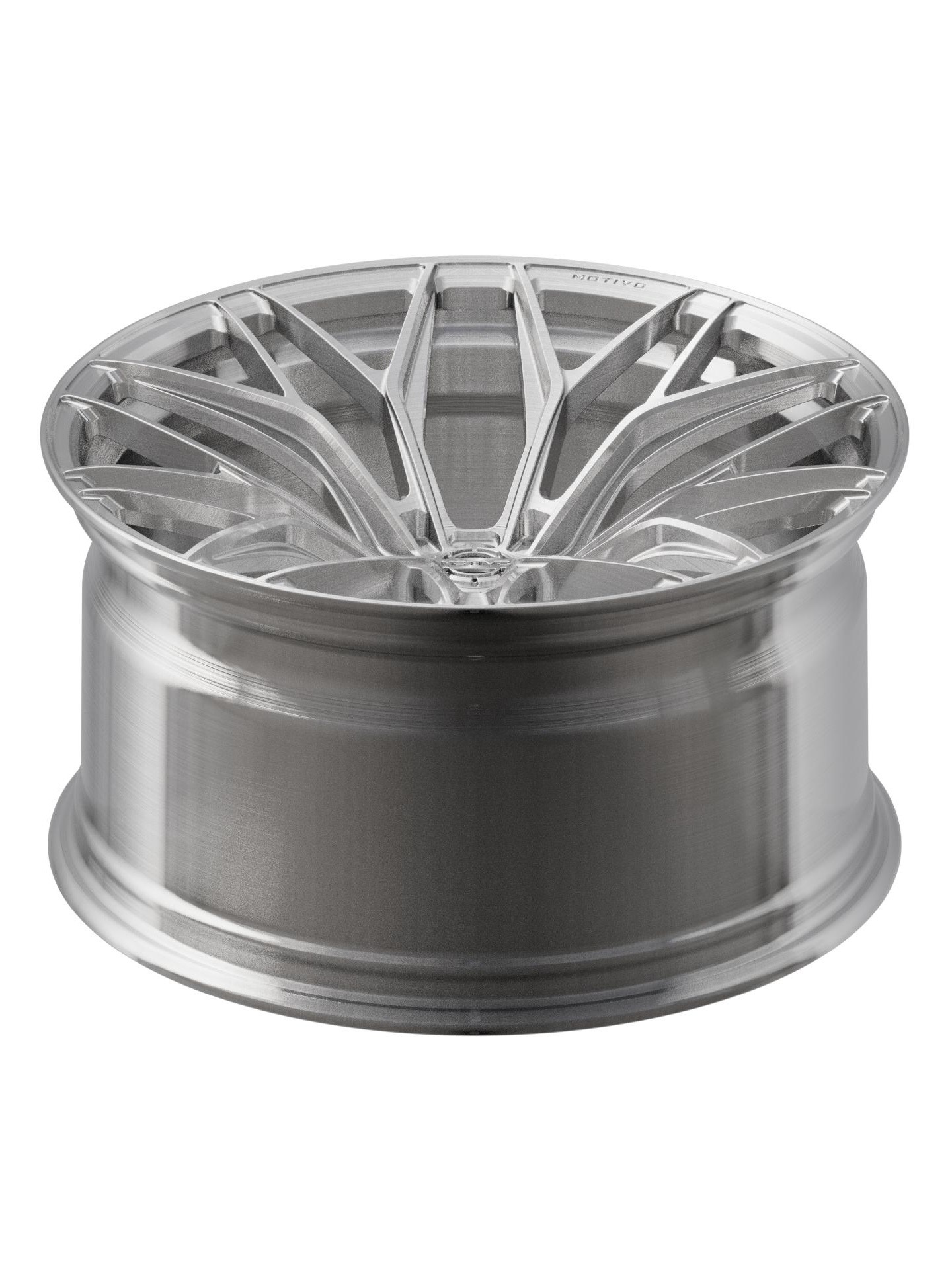

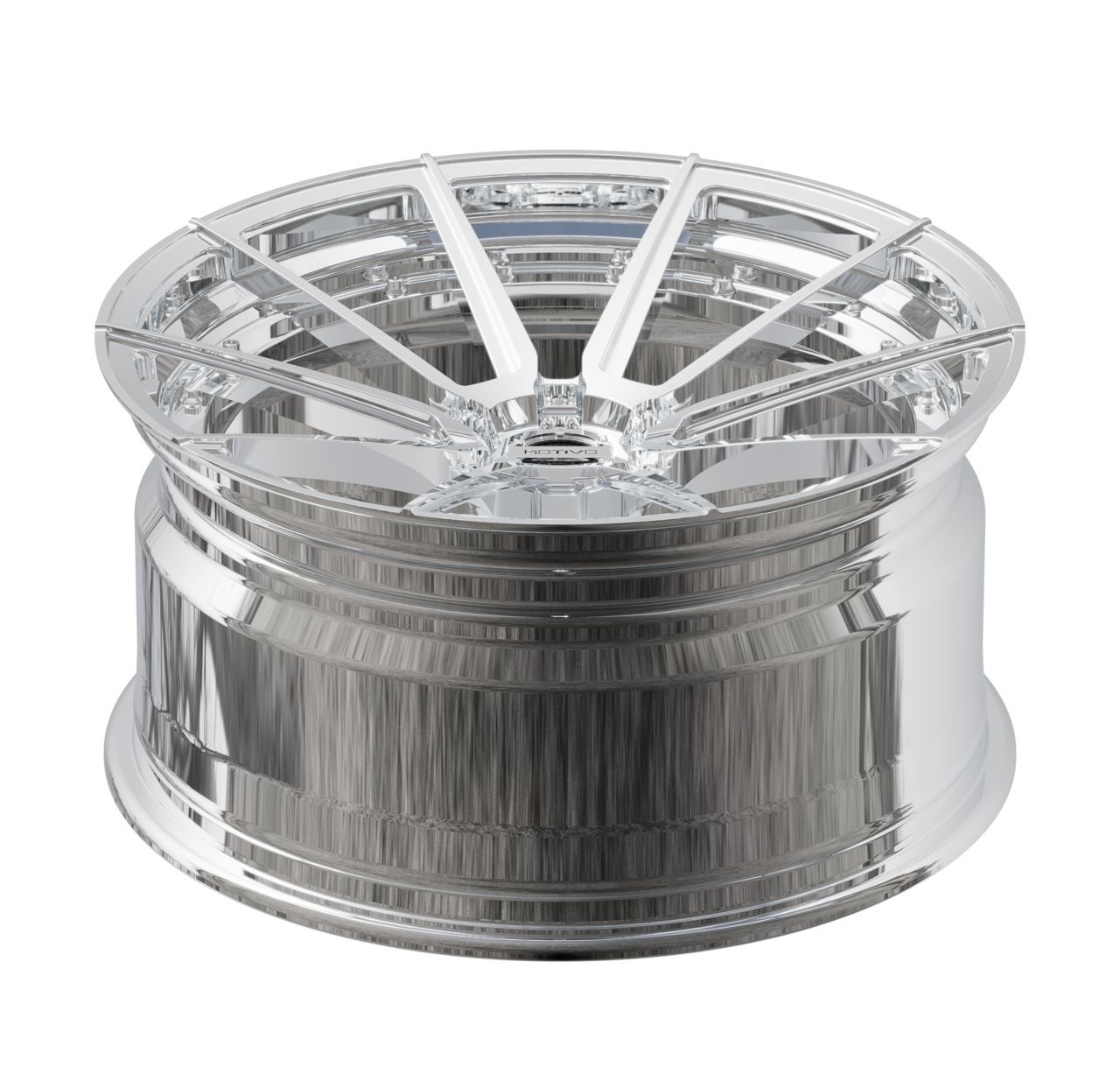

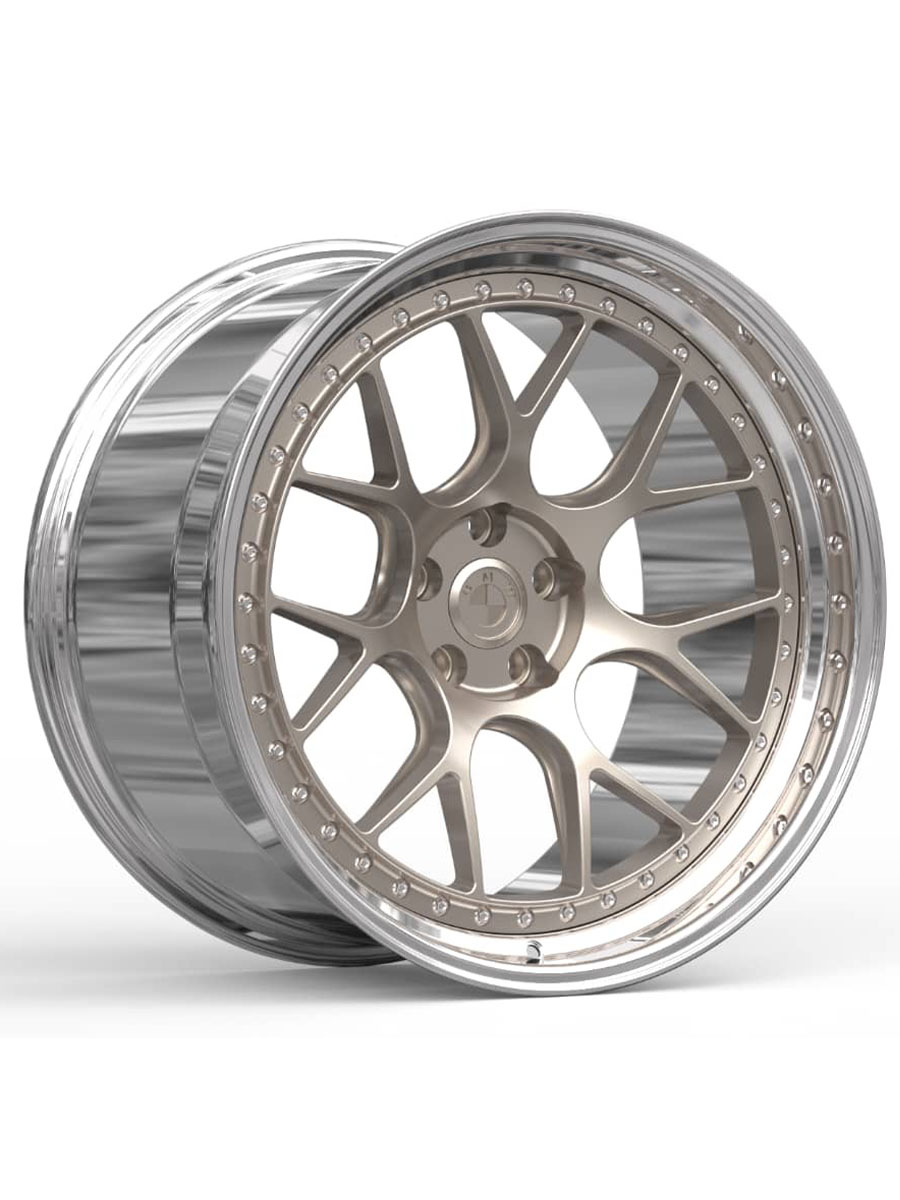

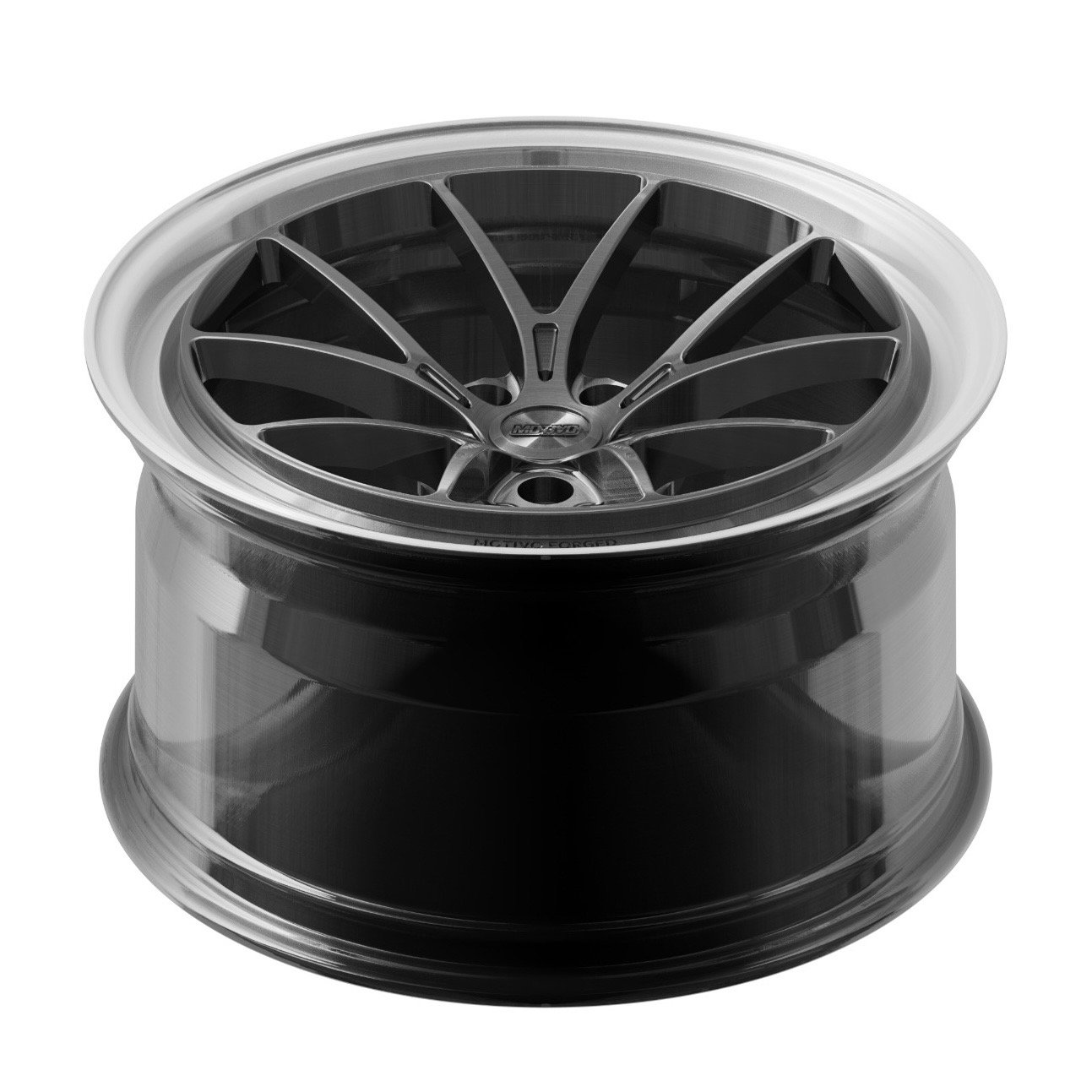

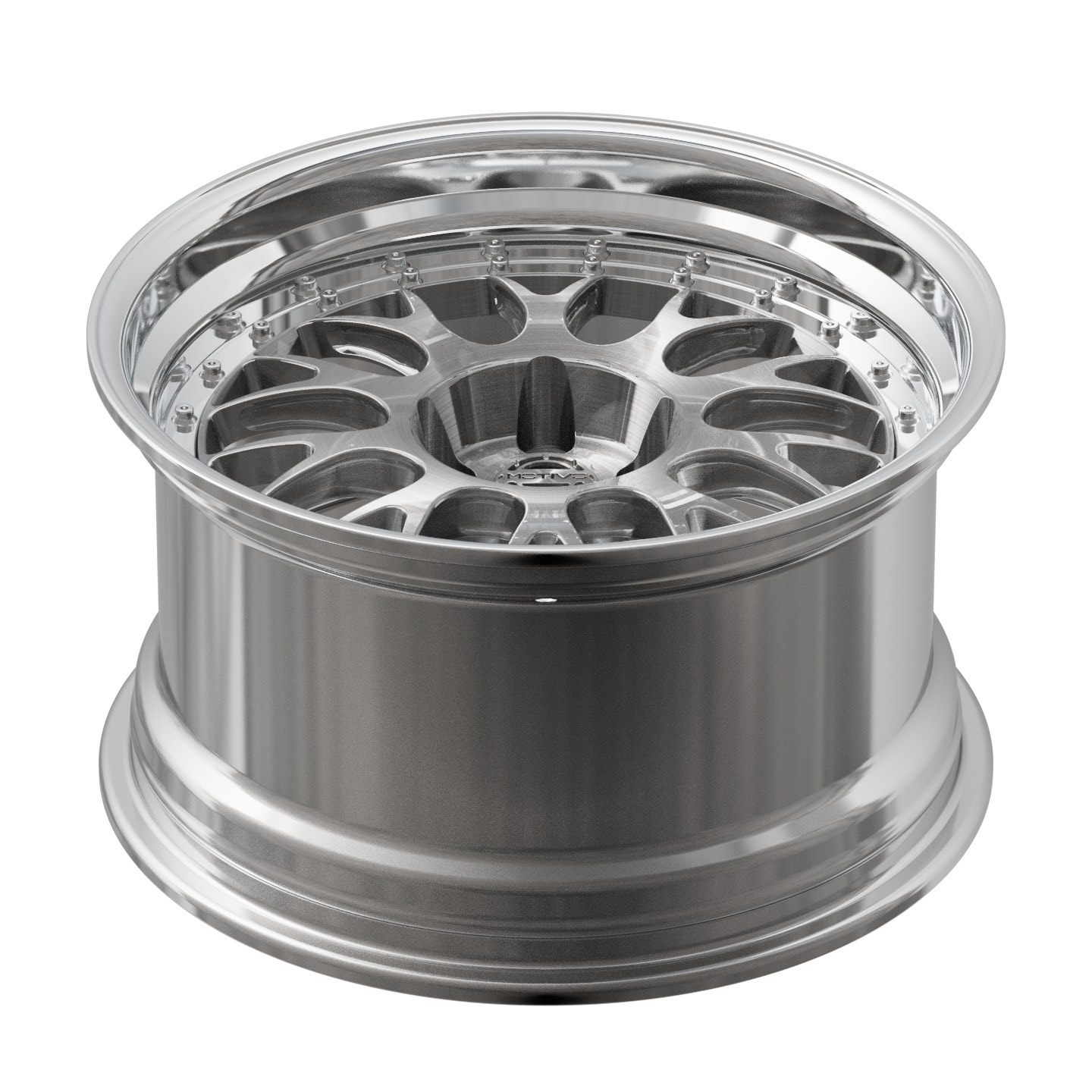

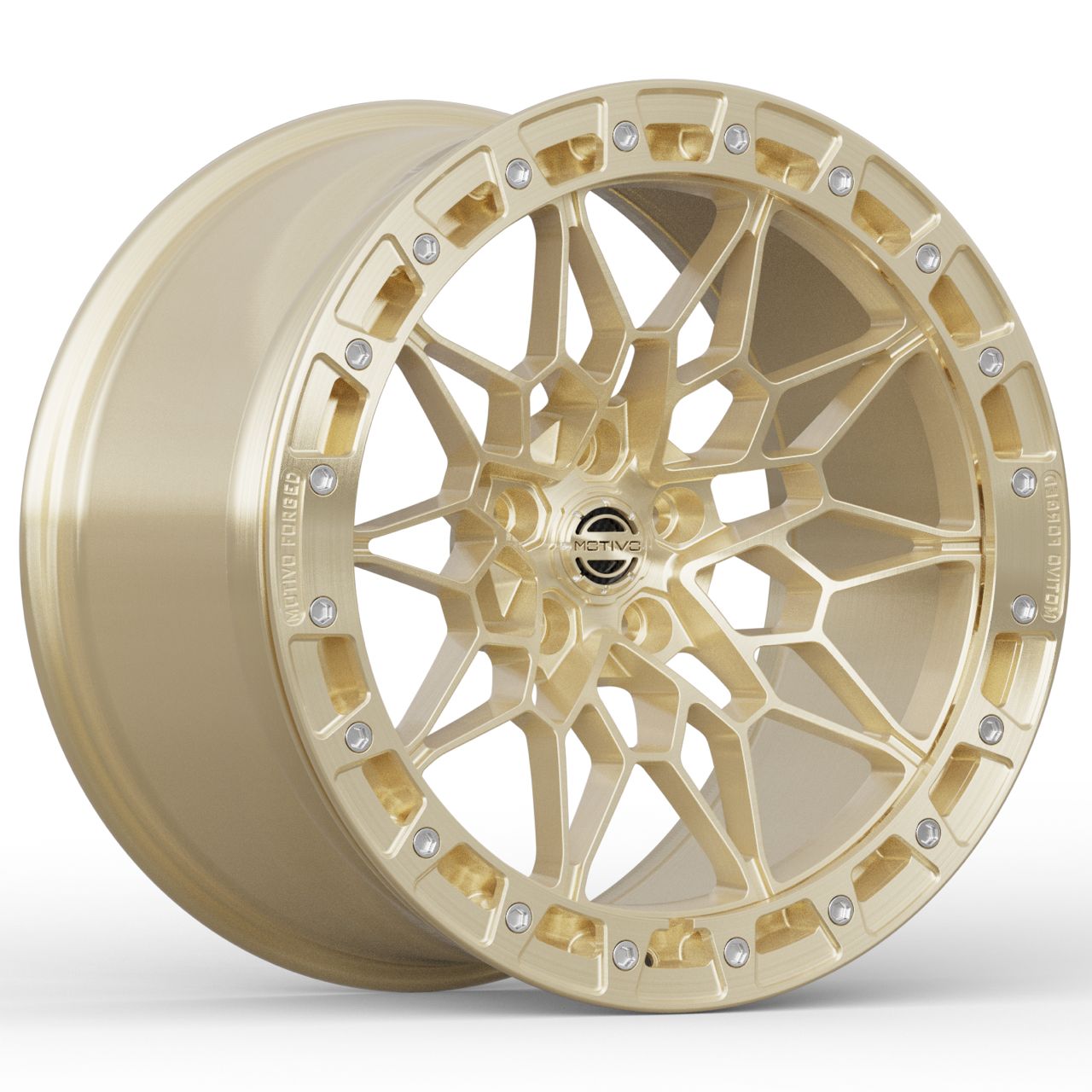

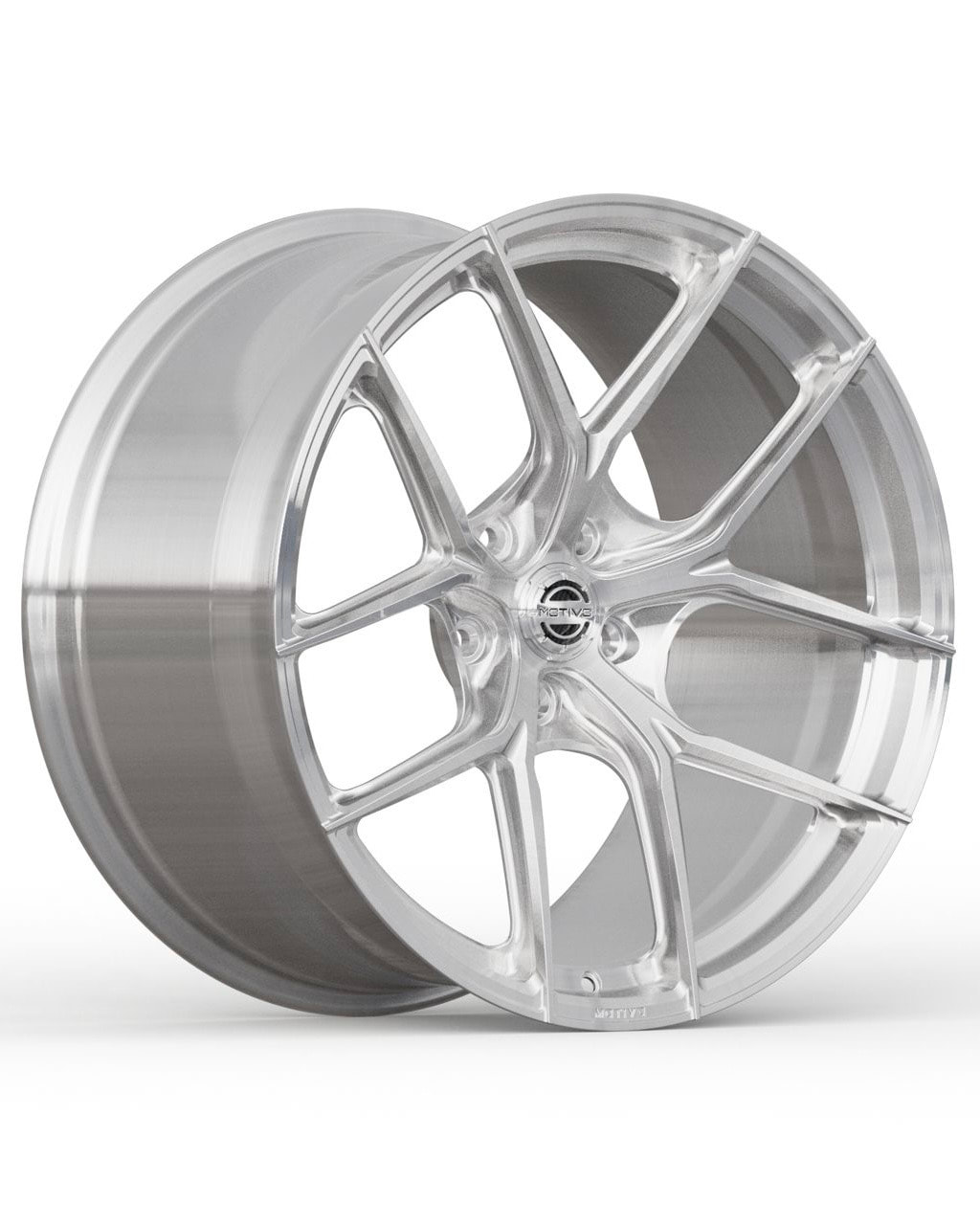

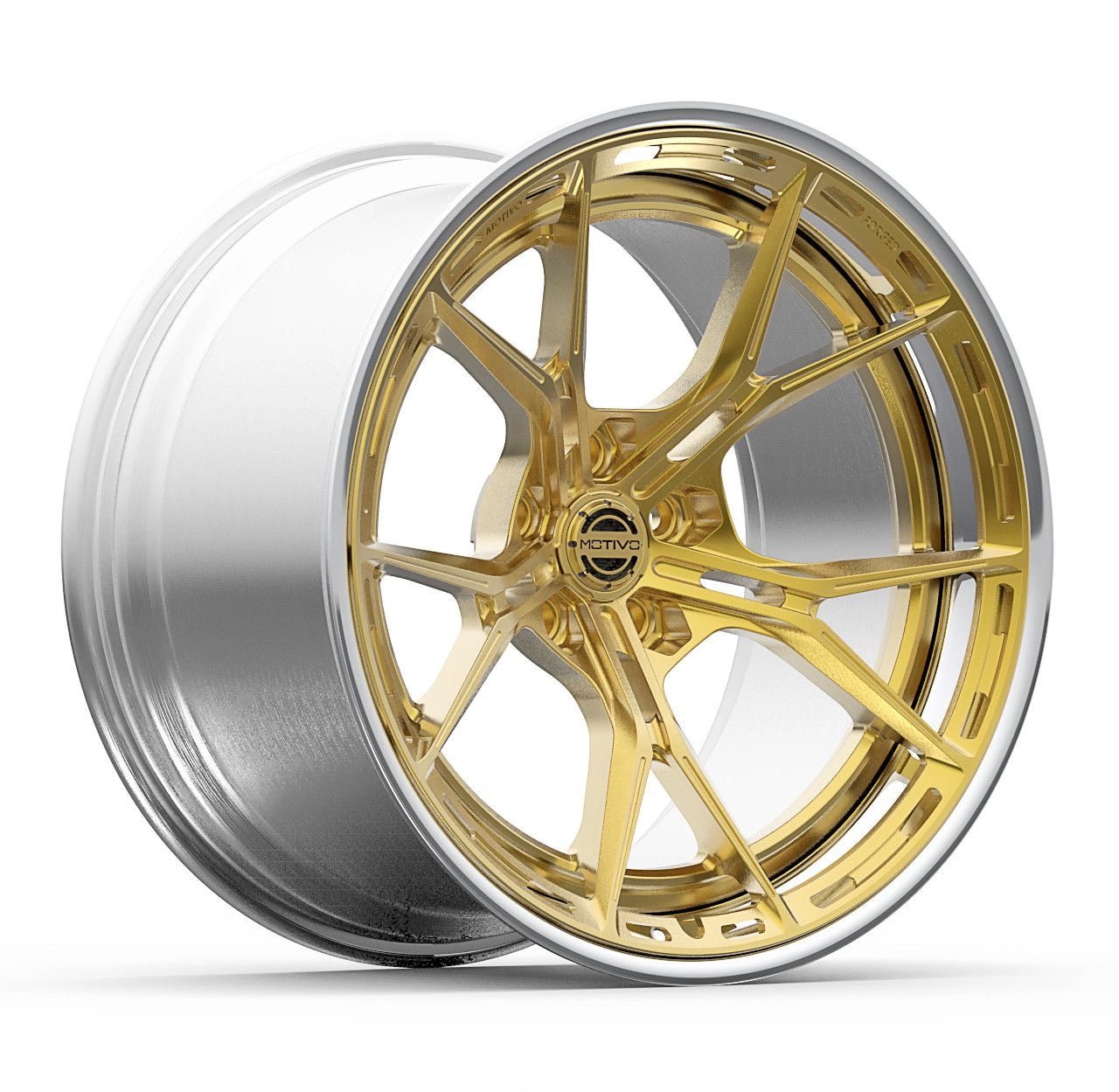

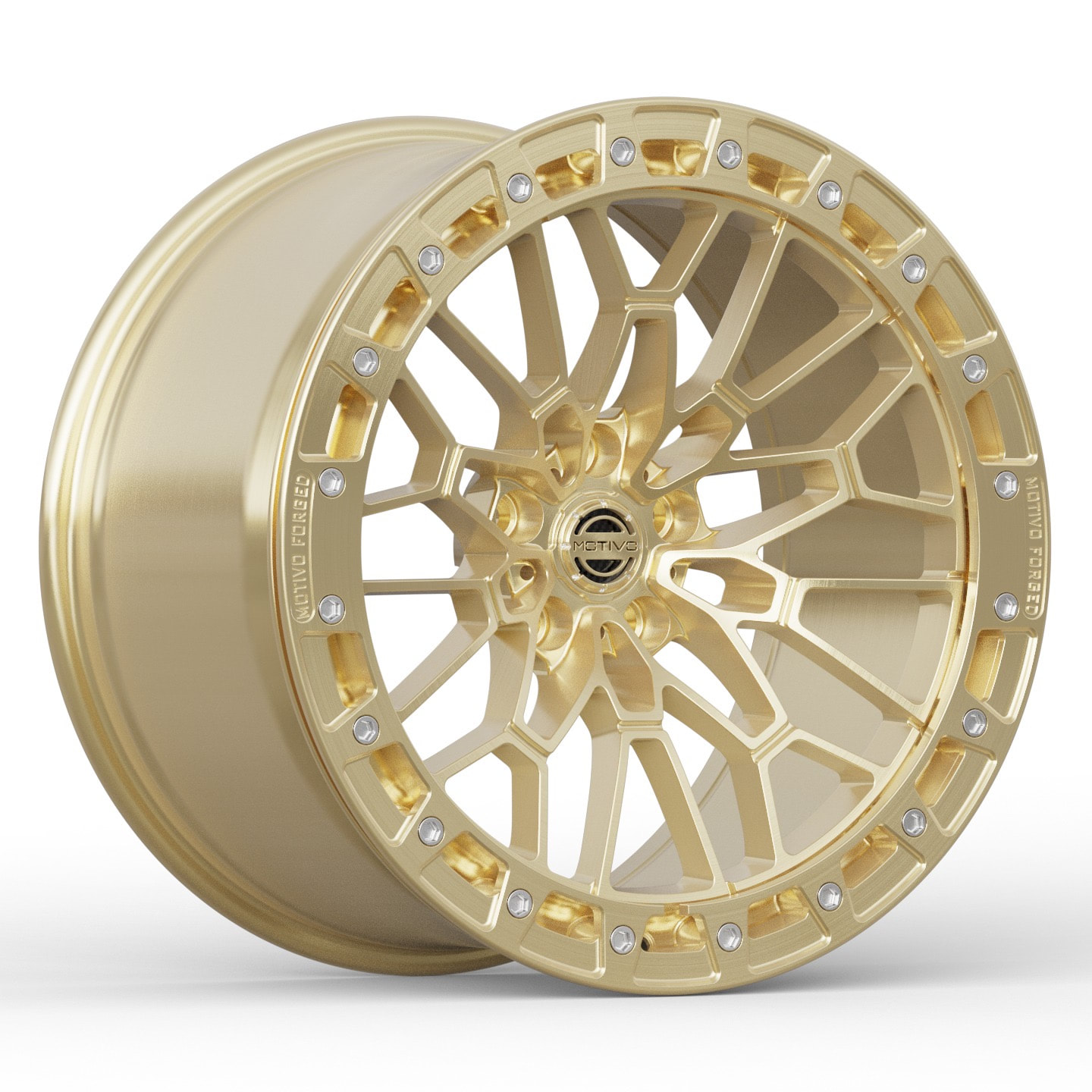

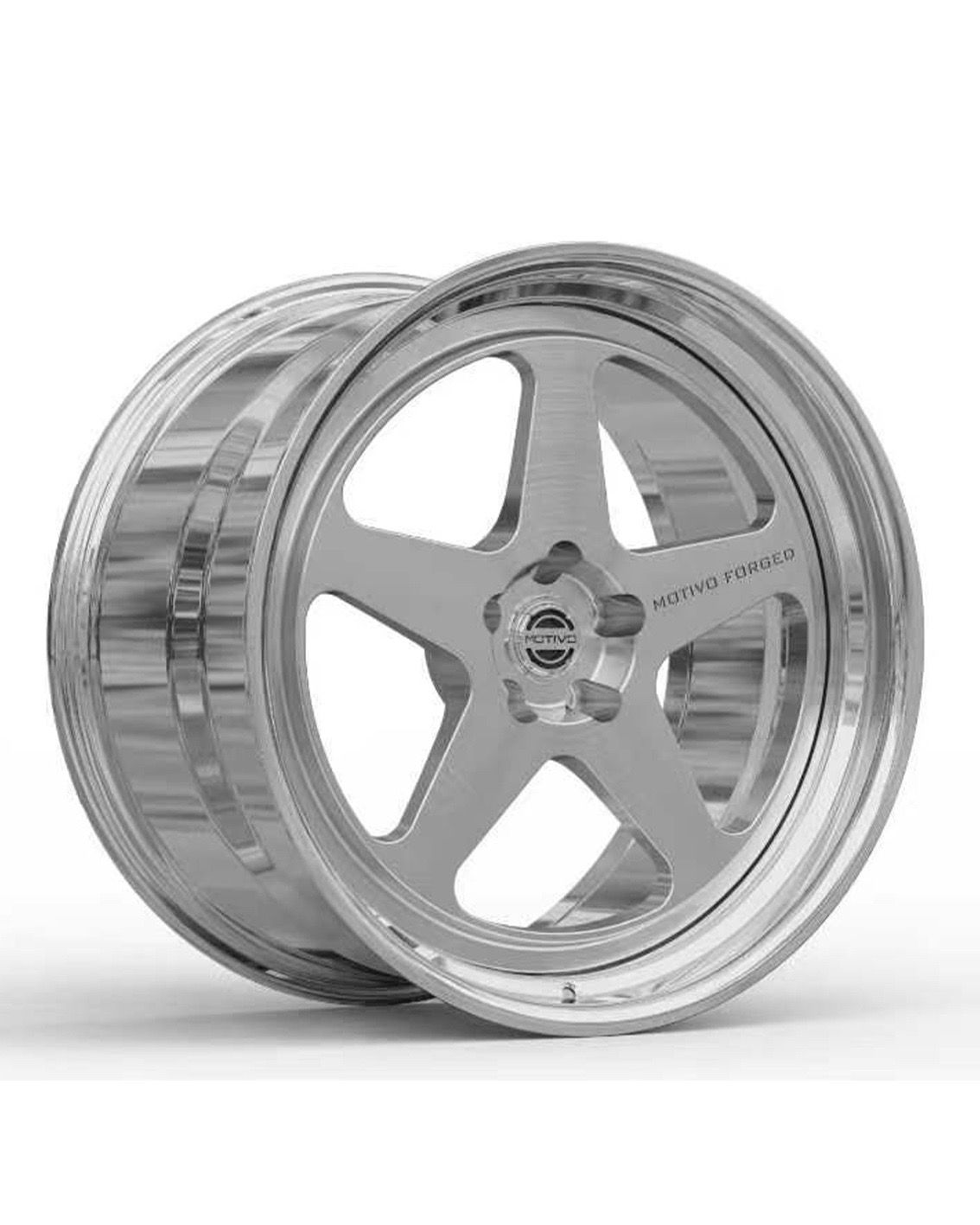

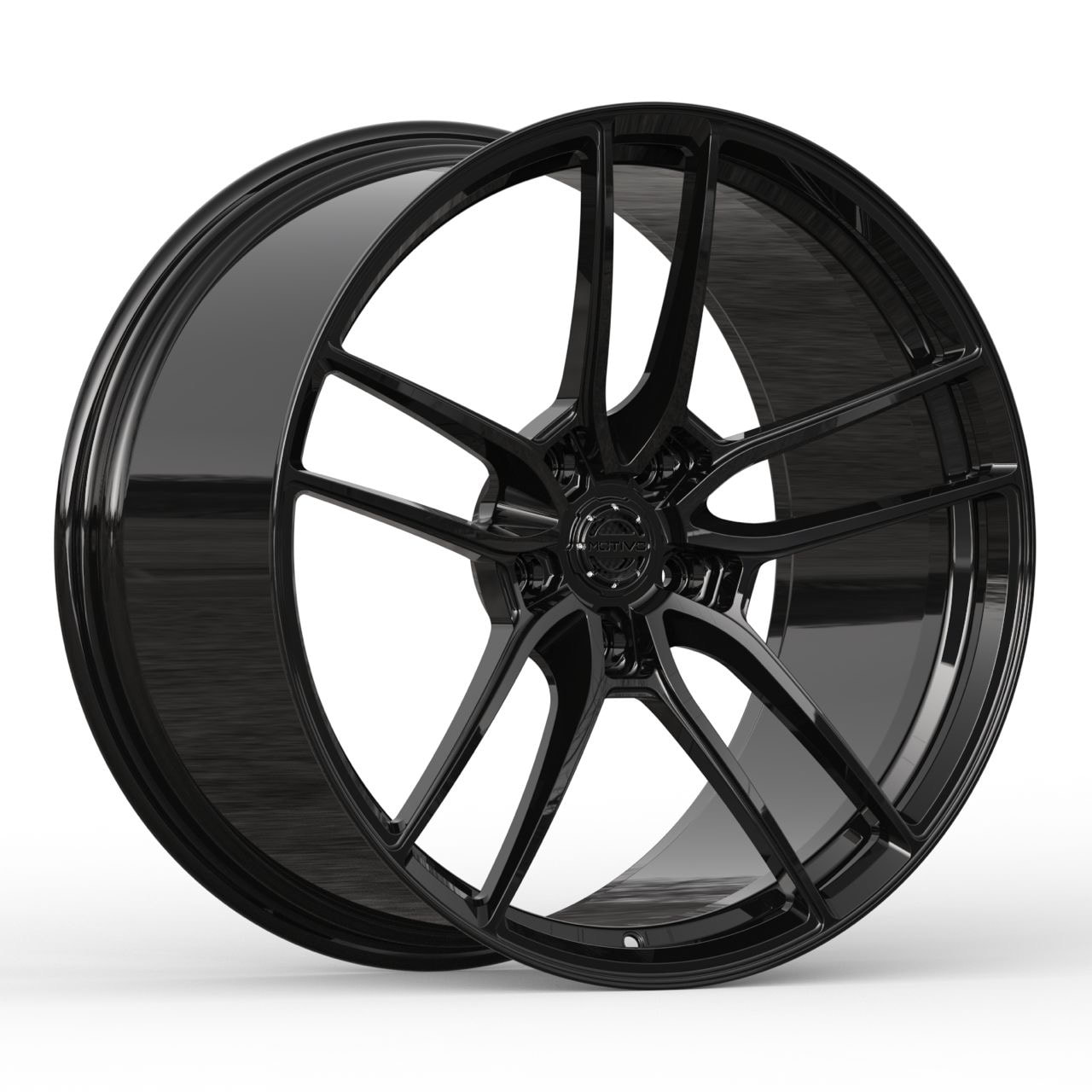

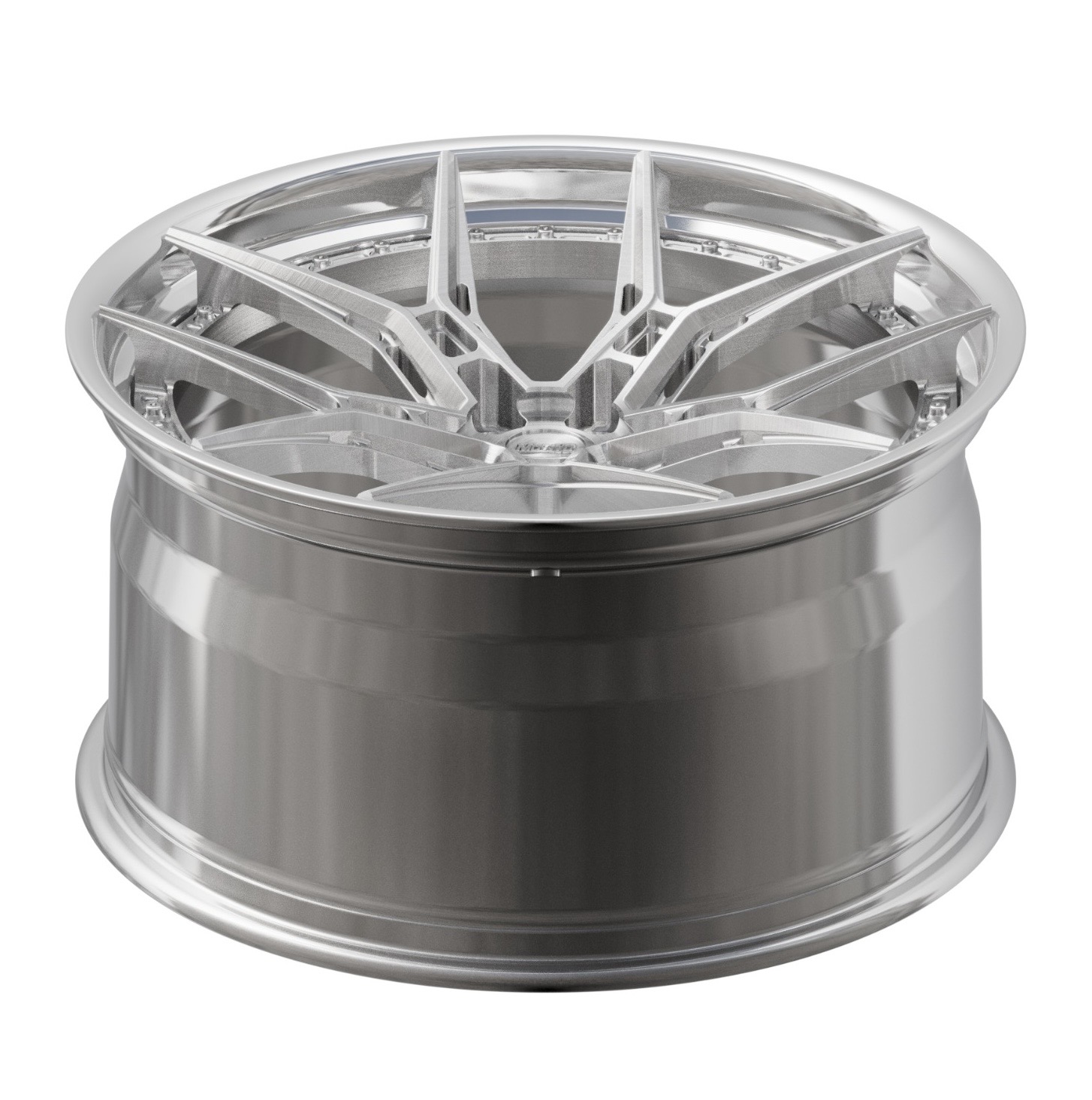

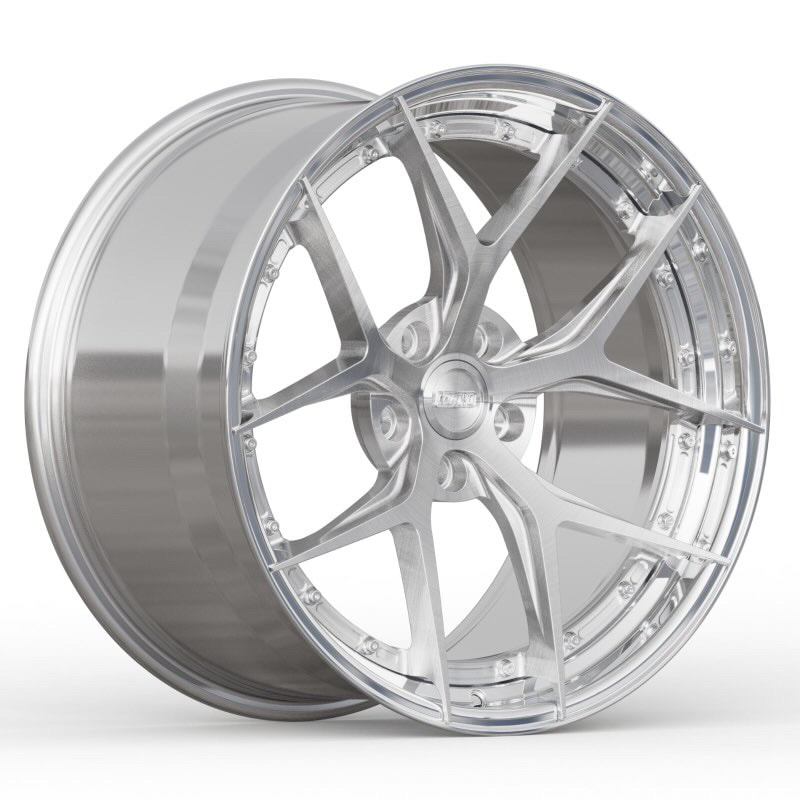

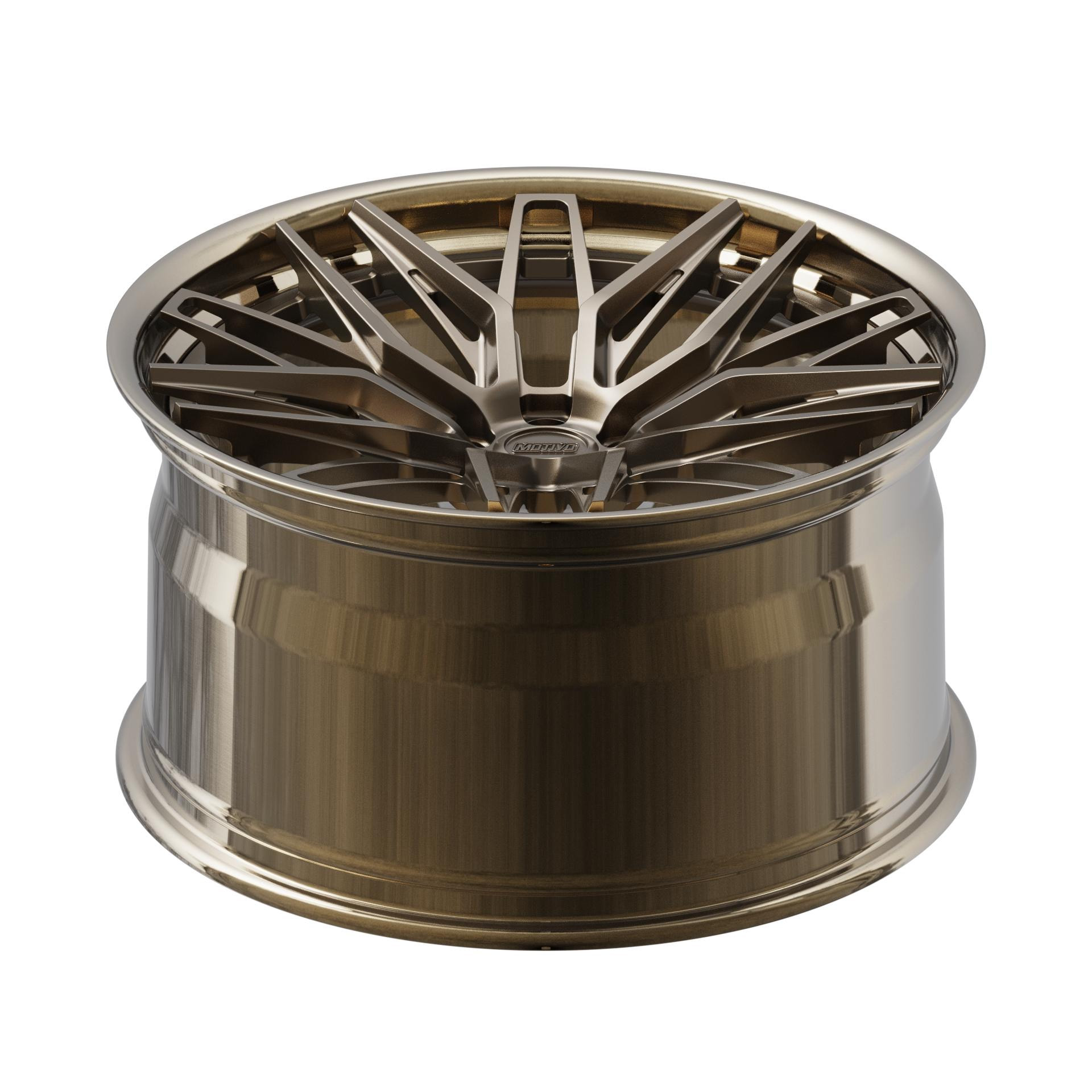

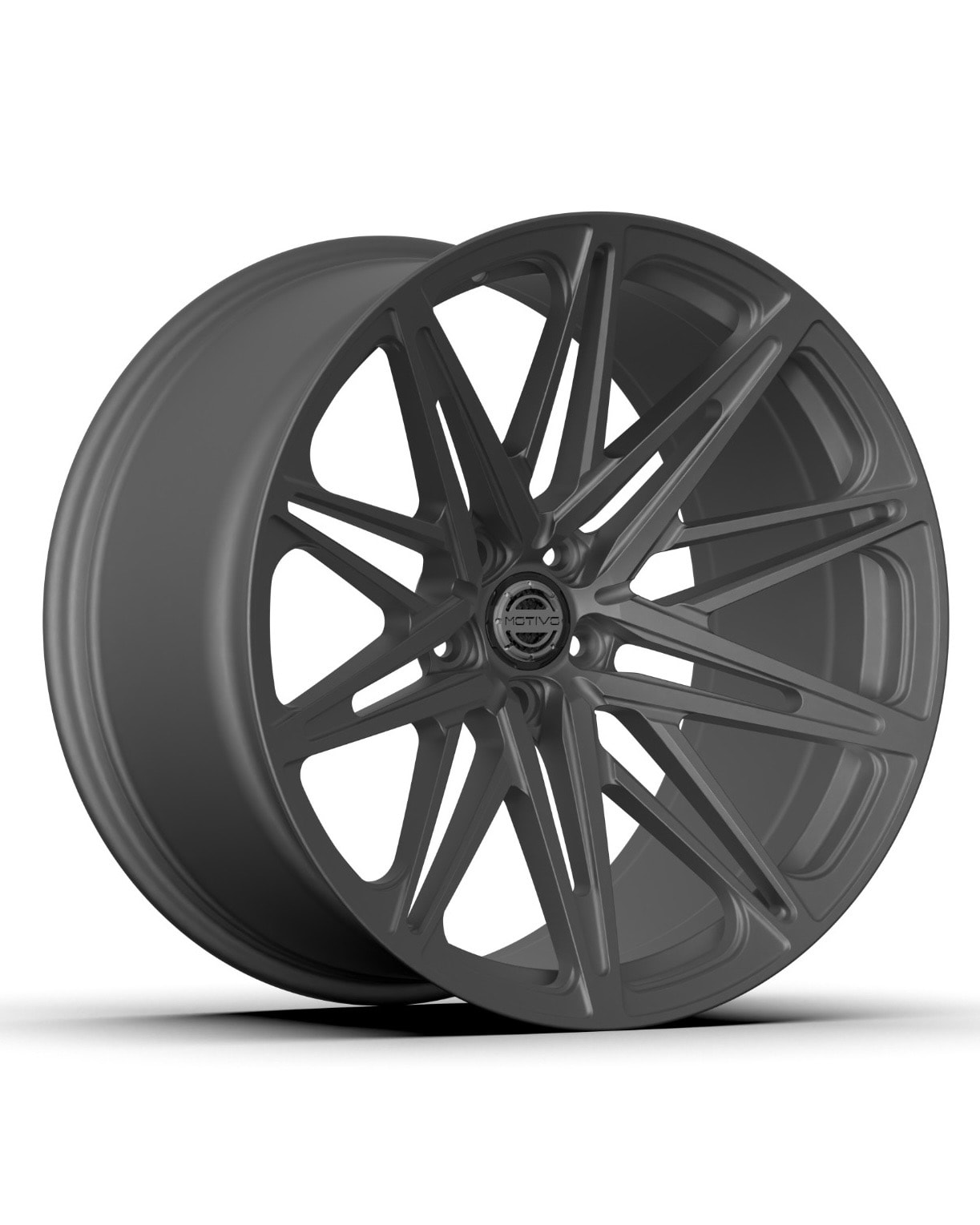

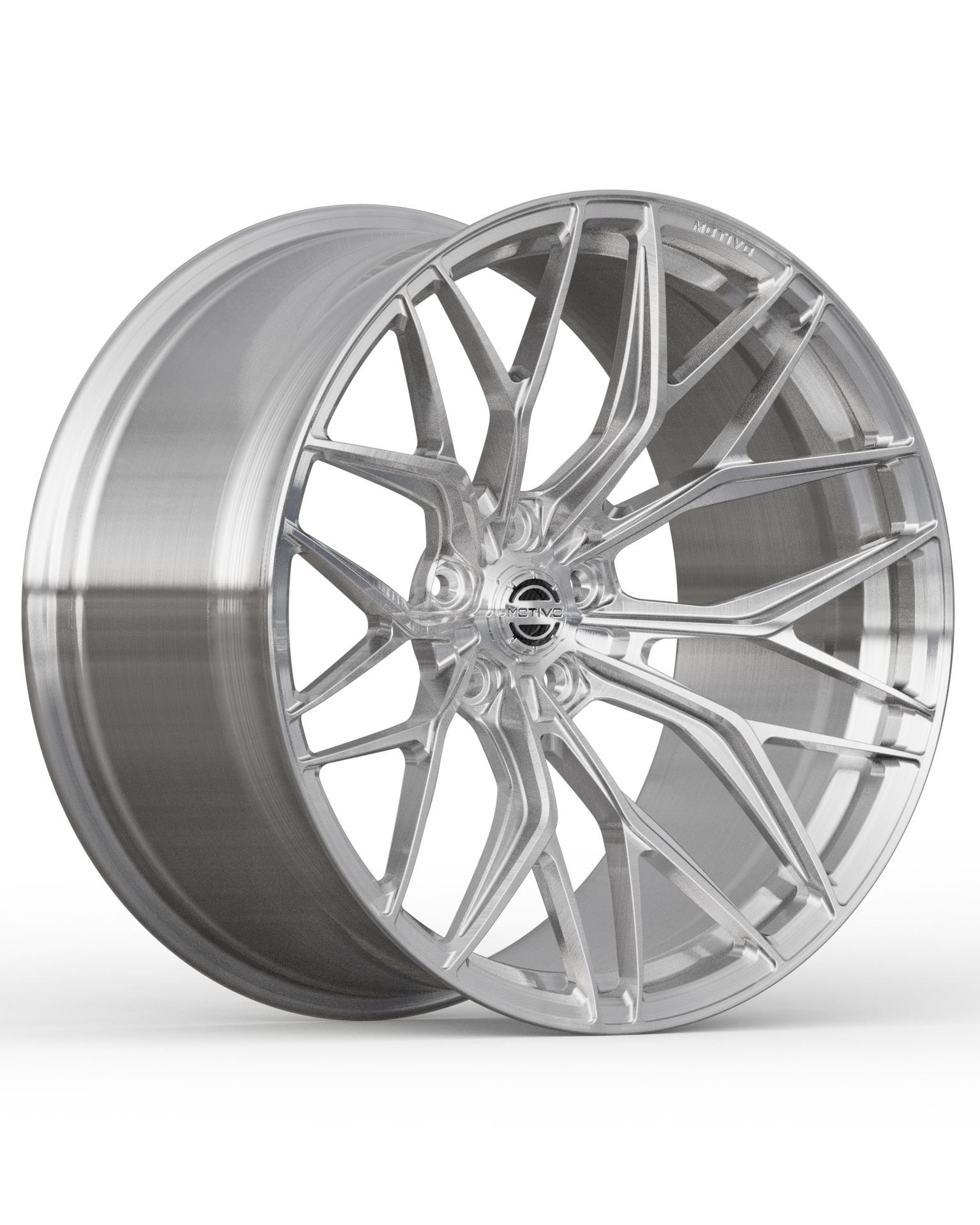

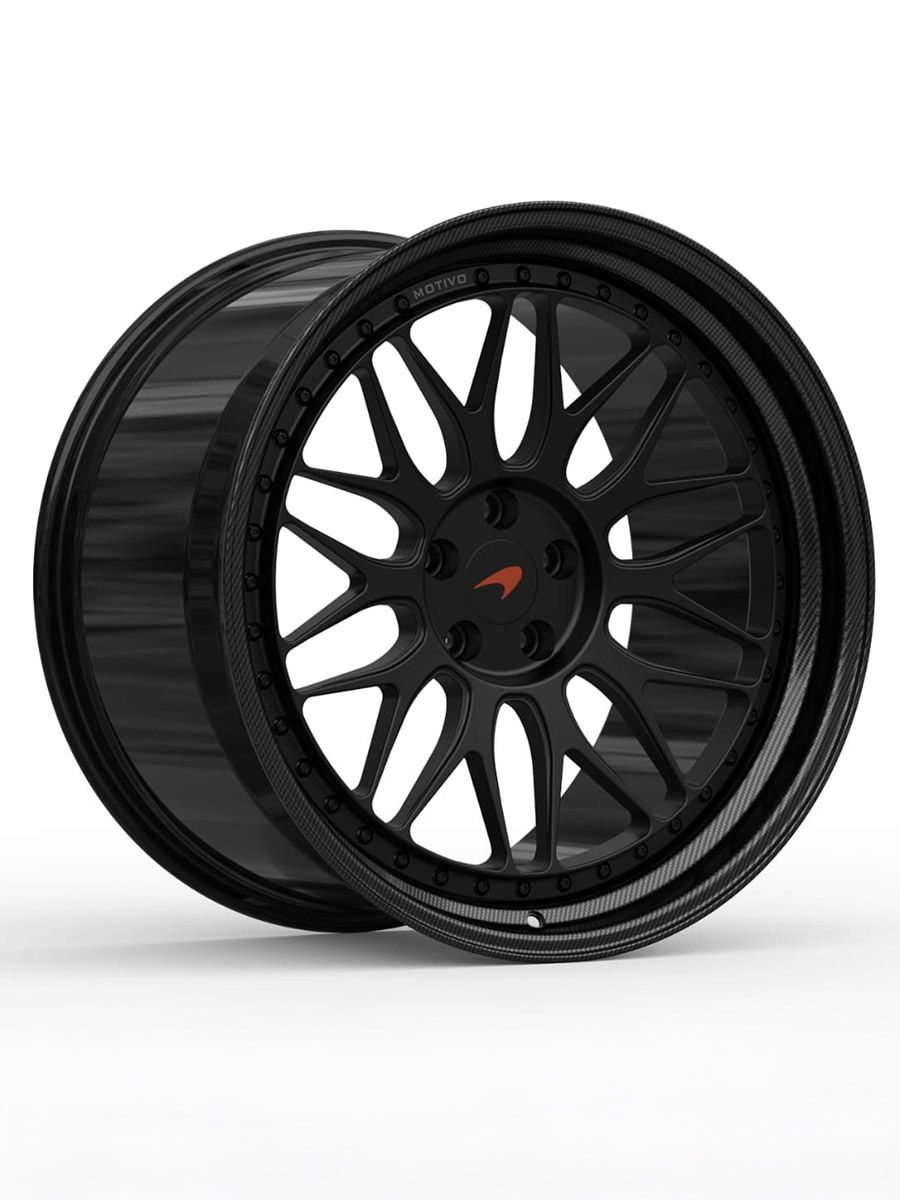

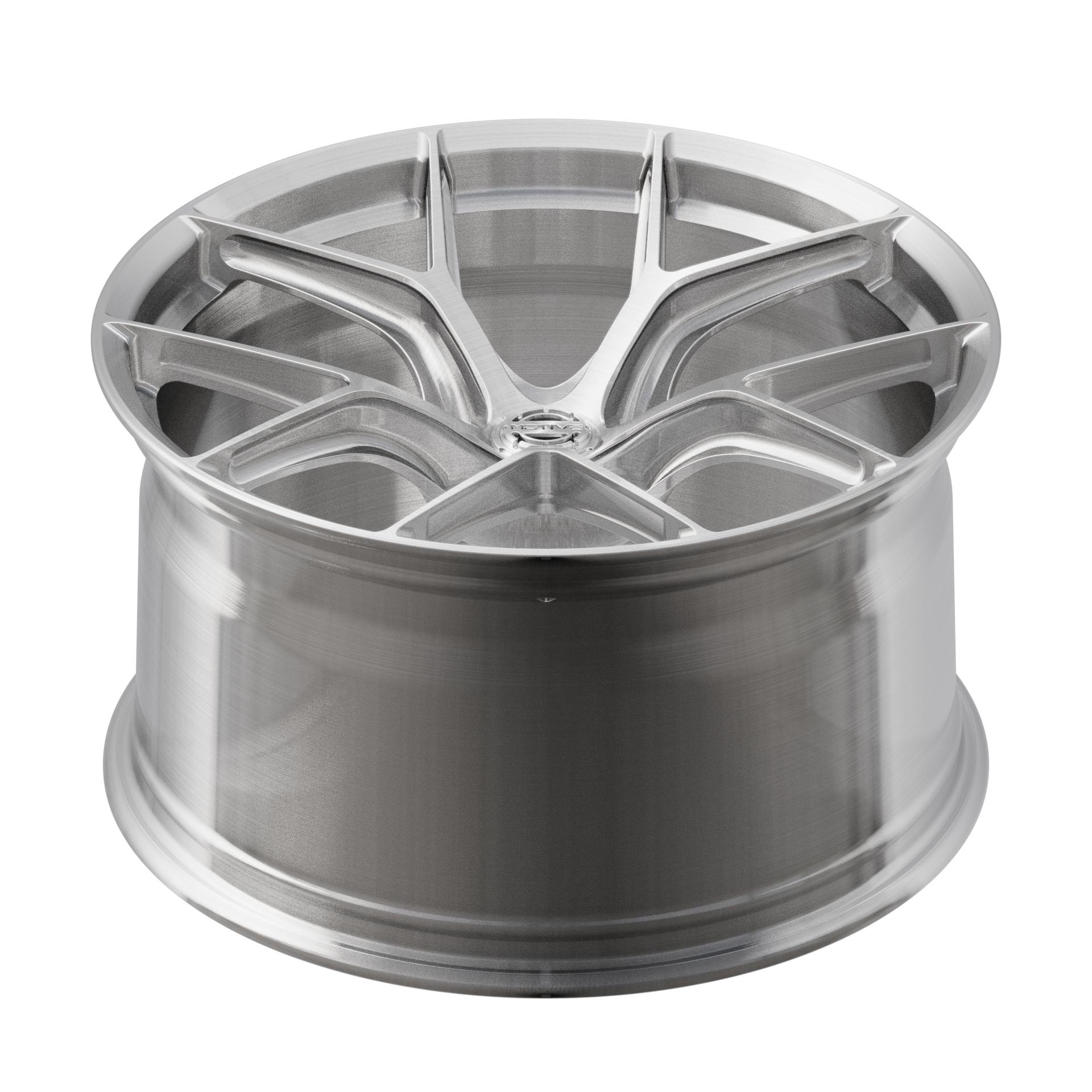

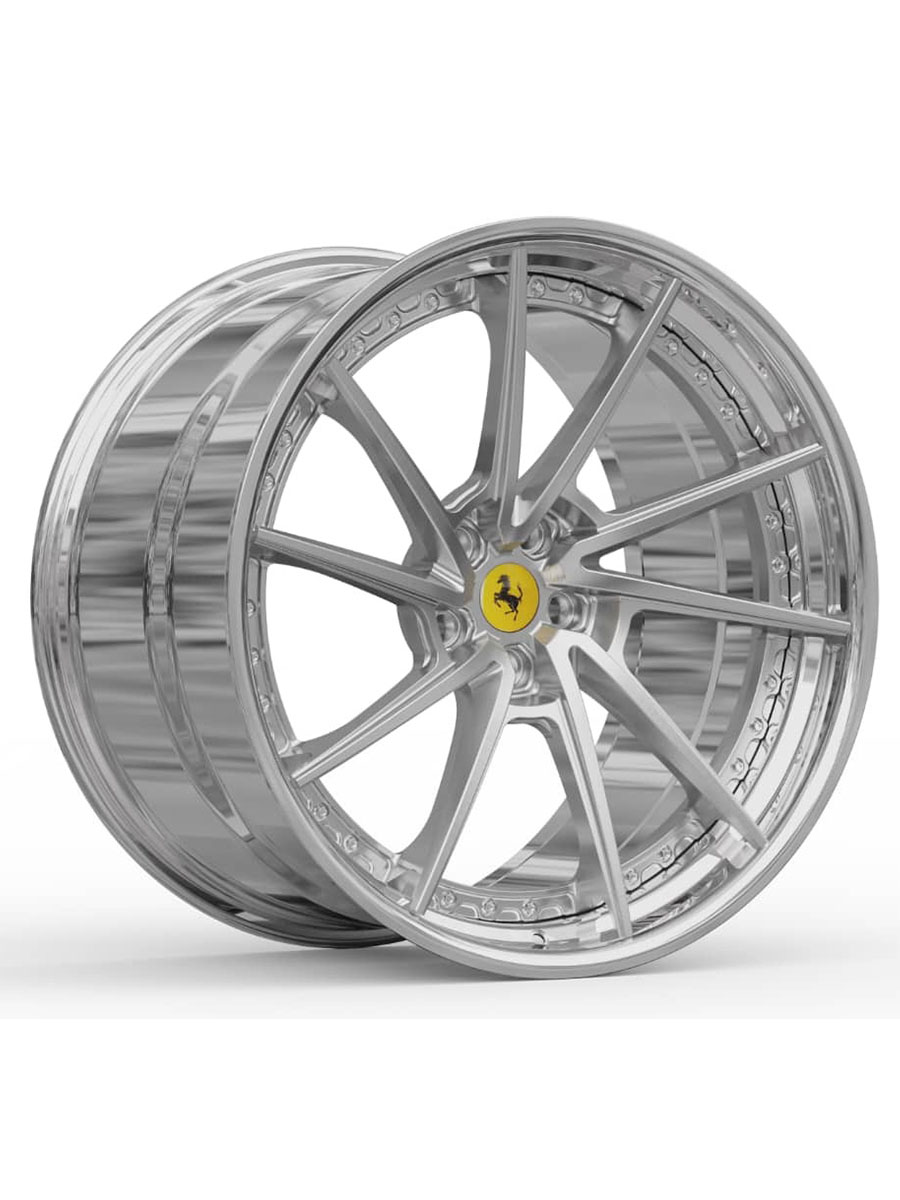

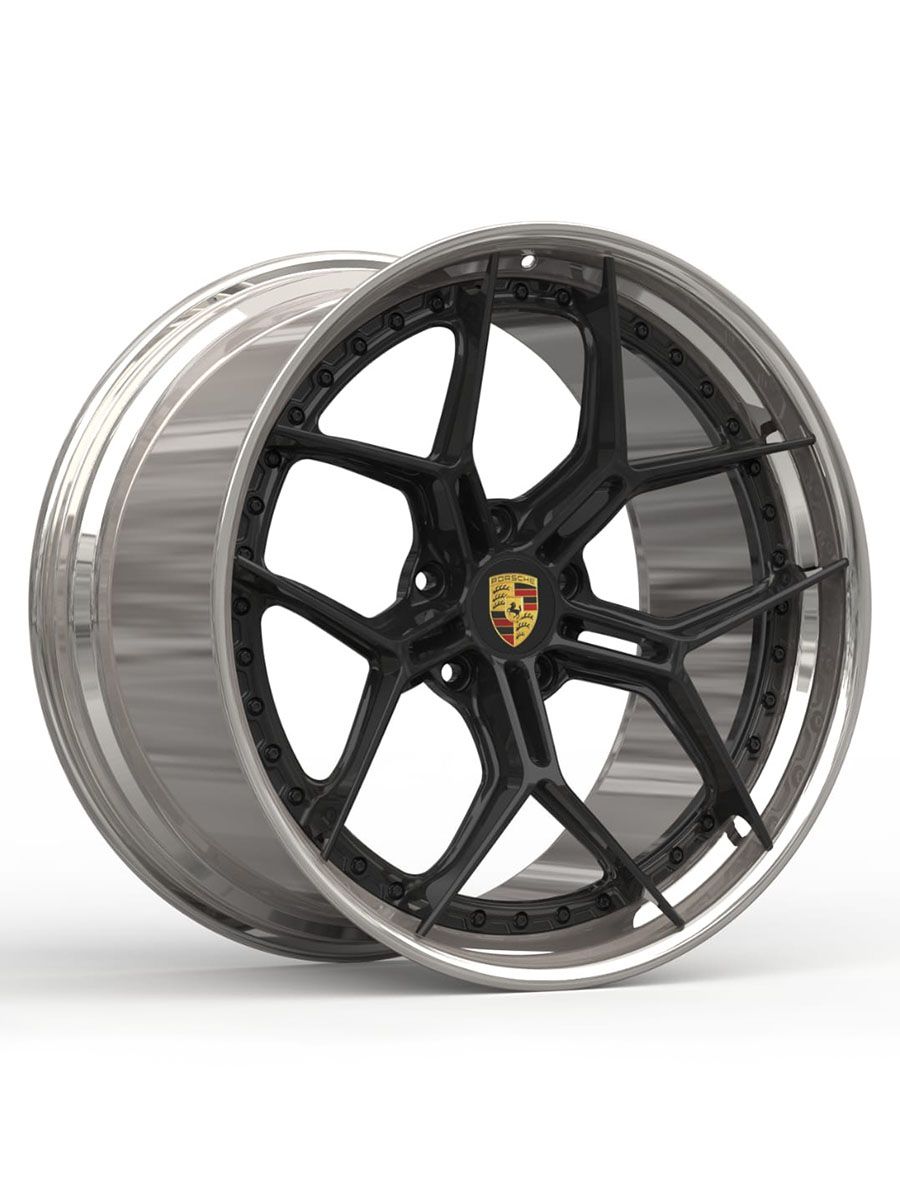

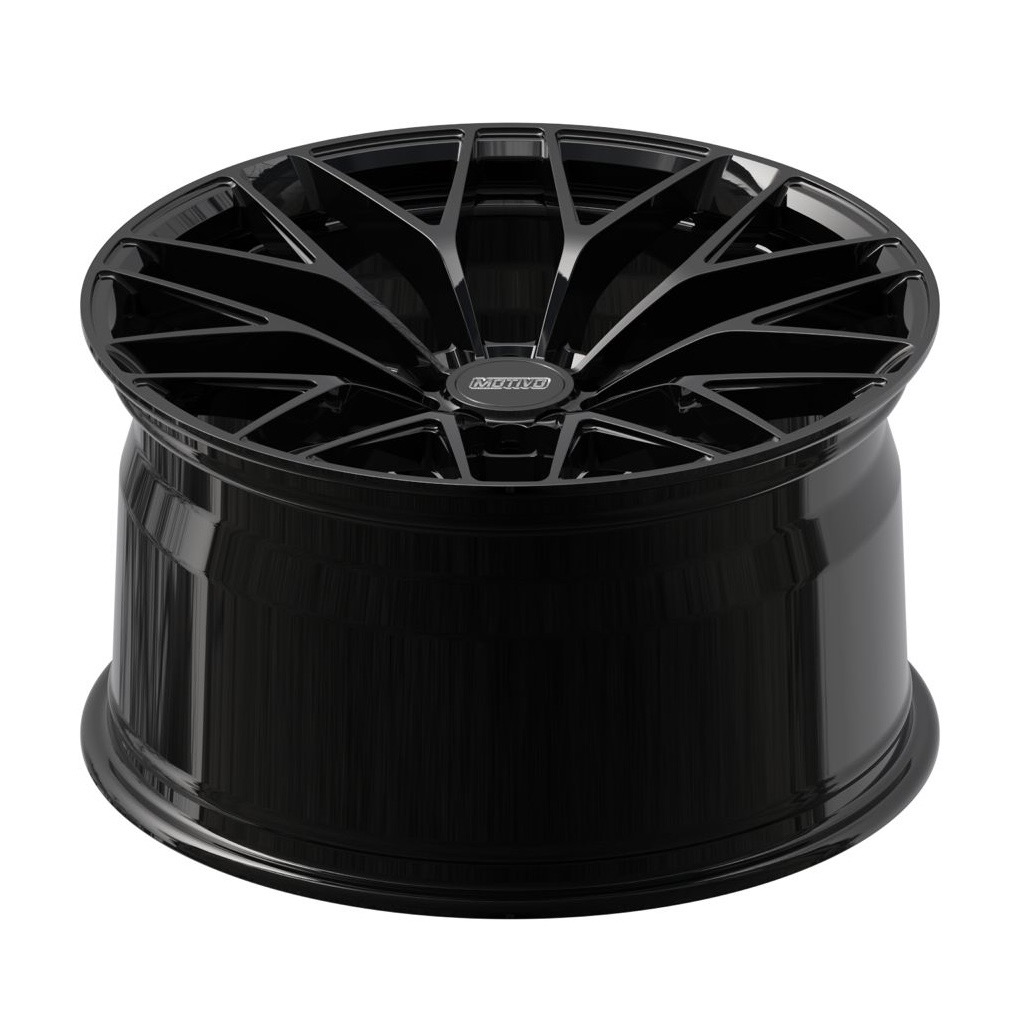

Wheels for the BMW M3

Every design below is available for the BMW M3, built to order in your choice of finish. Designs seen on real M3 builds are shown first.

Seen on M3 builds
Seen on M3 builds

Build your M3

Every Motivo Forged set is machined to order for your exact BMW M3 — your sizes, offsets, and finish. Tell us your build and we'll spec it with you.

Request a quote

BMW M3 Wheel FAQs

What bolt pattern is the G80 BMW M3?

The G80 M3 (2021+) uses 5x112 with a 66.6 mm center bore. F80 and earlier M3s used 5x120, so wheels do not interchange between generations.

Do 20 inch wheels fit a G80 M3?

Yes — 20x9.5 front with 20x10.5 or 21x10.5 rear is a common aftermarket fitment. The factory rear is already 20x10.5, so square-diameter 20" setups bolt on cleanly.

What bolt pattern is the F80 BMW M3?

The 2014-2018 F80 M3 uses 5x120 with a 72.6 mm center bore.
